Biological Safety Chamber

Product Details:

Biological Safety Cabinet  SS

CLASS II TYPE A2

AI-BC132

Make : Amaze instruments

Specification:

• Free Blower Ensures Noiseless Operation.
• Sound Level No More Than 65 Dba.
• The Unit Is Suitable For Class 100 Requirements Of Federal Standards 209e And Equivalent Iso Within The Work Area.
• The Exhaust Plenum Remains Under Negative Pressure & Hard Ducted To The Outside Environment Via Dedicating Ducting.
• Heap Filter With Efficiency 99.99% With 0.3 Micron (Supply Filter).
• Heap Filter With Efficiency 99.99% With 0.3 Micron (Exhaust Filter).
• Air Is Drawn Through Pre-Filter And Is Made To Pass Through High Effective Hepa Filters.
• The Outer Body Of The Cabinet Is Stainless Steel 304 Grade Or Mild Steel Duly Powder Coated.
• Single Stainless Steel Perforated Working Platform With Smooth Finish Ensures No Risk Of Cuts To The Operator.
• The Equipment Is Mounted On A Movable Stand.
• Sliding Sash Moves Vertically Up-Down With Counter Balanced Weight.
• The Front Window Made Of Laminated Safety Glass To Protect Against Leakage Of Uv Rays And To Ensure Containment Of Potential Hazardous Material.
• Built In U.V. Germicidal Light Helps In Killing Of Bacteria And Other Microorganism.
• Working Area Is Illuminated By Diffused And Glare Free Fluorescent Lighting Fitted To The Unit.
• Duly Statically And Dynamically Balanced Highly Efficient Centrifugal Blower Units Sized To Generate Adequate Air Flow Volume Over The Hepa Filter.
• Operates With Minimum Noise Level And Vibration.
• Height Of The Working Table Provides Comfortable "Sit Down" Working Position For The Operator.
• Supplied Complete With Cord & Plug To Work On 220-240vac, 50hz Supply With Over Current Breaker.
• Provision For Bunsen Burner Fitting By Gas Cock.

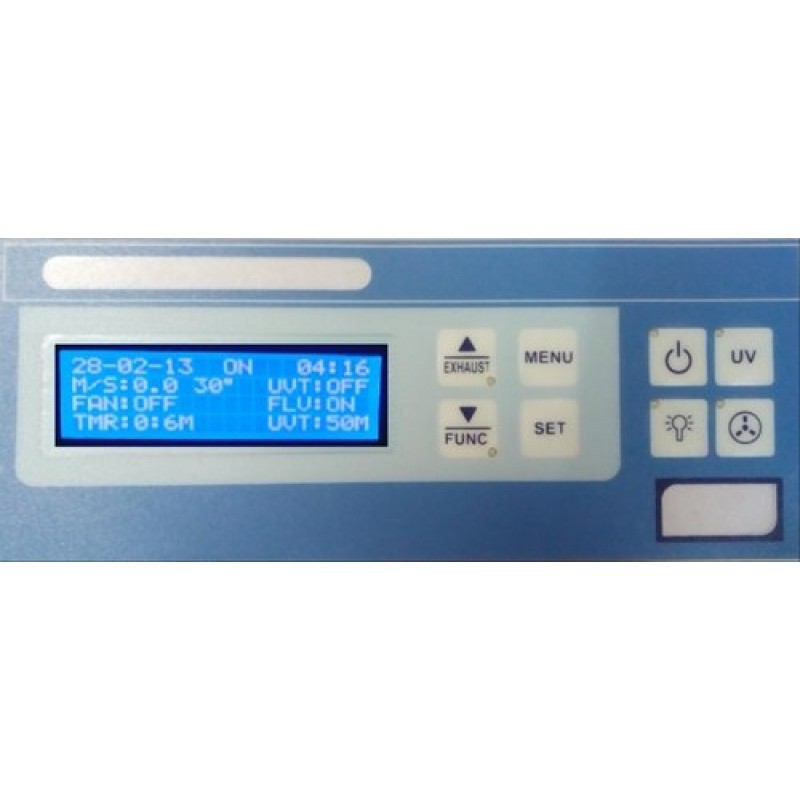

• LCD Display With Soft Touch Switches For Motor, U.V. Light, F.V. Light And U.V. Timer (Without Air Flow Velocity Sensor)

Technical Specification:

Inner Dimension (Mm)       : 3ftx2ftx2ft (Wxdxh)

Deign And Classification     : Class Ii Type A2 :- 70% Of The  Air Is Re-Circulated Into The Work Area And 30% Exhausted

Illumination                      : ≥800 Lux

UV Light                           : 30w

Air Flow Velocity                : 90±20 Fpm (0.3-0.5 M/S) Measured T 1” From Face Of Hepa  Filter (As Per The Bsc Class Ii Type A2 Cabinet Requirement).

TOTAL SS 304 GRADE

• LCD display with soft touch switches for Motor, U.V. Light, F.V. Light and U.V. Timer (With air flow velocity sensor)
