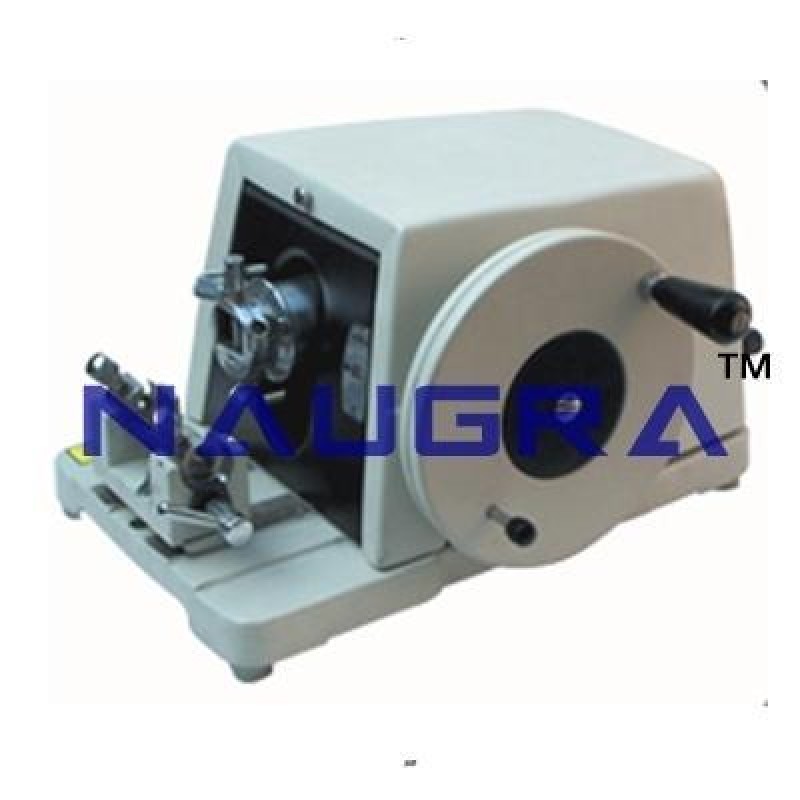

Rotary Microtome for Biology Lab
Product Details :
Rotary Microtome for Biology Lab - Heavy base with hinged cover for protecting the interior mechanism, and knife holder. With every complete revolution of the drive wheel, the feed panel engaged the teeth of the ratchet wheel which advances the object holder through the cone and inclined plane mechanism. A safety device automatically disengages the feed mechanism. The feed indicator is in front and the fed setting is at the back of the microtome which sets 1-50 micron. A razor 120 mm made from heat-treated steel and tested for Microstructure is supplied. There is an arrangement to tilt angle of razor adjustable up to 30º on reference scale.
- Feed adjustment: 1-50 Micron
- Minimum thickness: 1 Micron
- Total Feed excursion: 28 mm. Opening of object clamp.
- Overall Size : 40 x 38 x 23 cms. with wooden case.
- Net Weight: 30 Kg. approx.
