Bitumen Extraction Test Apparatus
Product Details:
Specification :

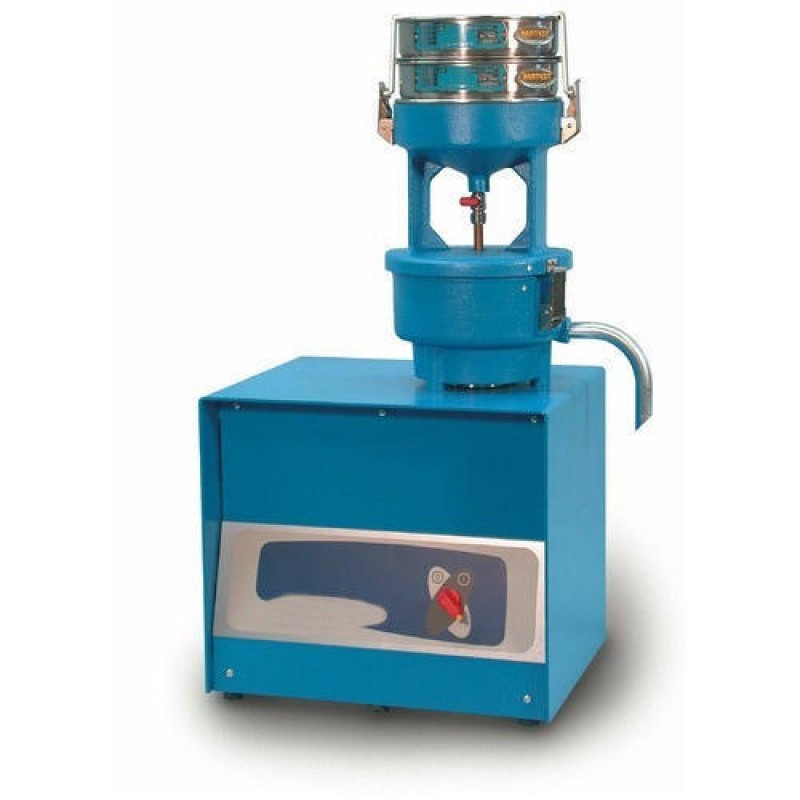

For determining bitumen percentage in Bituminous paving mixtures. Bitumen Extraction Test Apparatus has a removable, precision machined, aluminium rotor bowl, mounted on a vertical shaft. A filter paper disc is pressed in-between the rotor bowl and cover plate by tightening a knurled nut. The bowl assembly is enclosed in a housing operating model; the rotor bowl is coupled to a motor. The solvent may be introduced during test through a cup on the housing cover. The apparatus is supplied complete with a Pack (50 Circles) of Filter Paper.
Cat No. & Name | Description |
AT-236-1: Bitumen Extraction Test Apparatus | Centrifuge type Bitumen extraction apparatus 1500gm capacity Manually Operated with pack of Filter Paper (50 Circles). |
AT-236-2: Bitumen Extraction | Centrifuge type Bitumen extraction apparatus 3000gm capacity |
Test Apparatus | Manually Operated with pack of Filter Paper (50 Circles). |
AT-237-1: Bitumen Extraction Test Apparatus | Centrifuge type Bitumen extraction apparatus 1500gm capacity Electrically Operated having Dimmerstat for controlling speed from 2400 to 3600rpm with pack of Filter Paper (50 Circles). |
AT-237-2: Bitumen Extraction Test Apparatus | Centrifuge type Bitumen extraction apparatus 3000gm capacity Electrically Operated having Dimmerstat for controlling speed from 2400 to 3600rpm with pack of Filter Paper (50 Circles). |
