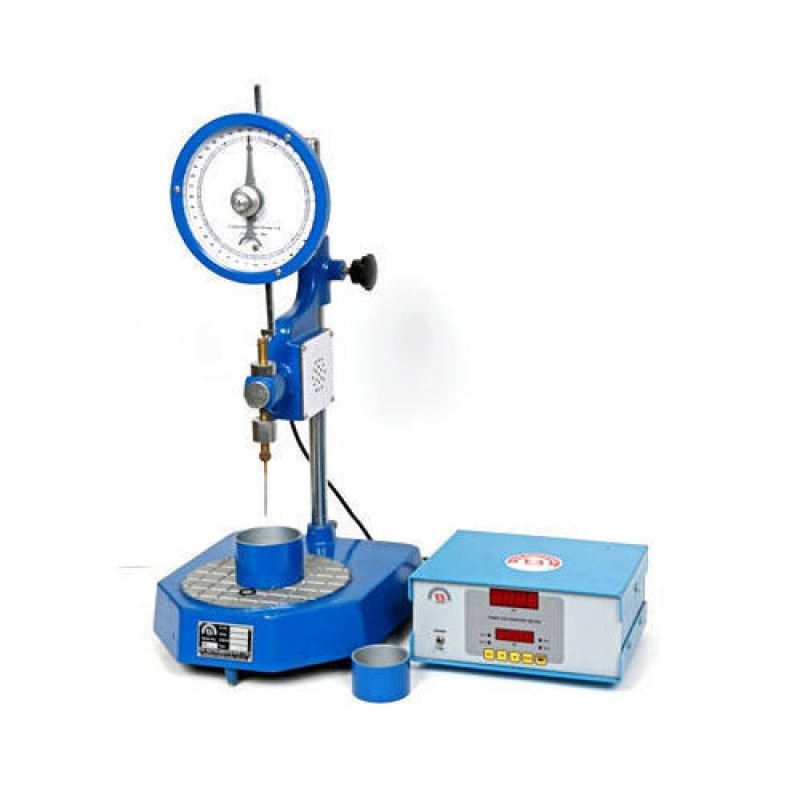

Bitumen Penetration Test Apparatus
Product Details:
Specification :
Bitumen Penetration Test Apparatus are used for testing bitumen, tar, cement and soils. A Chosen force is applied over a given area for a known period of time and the depth of penetration or the depression made in the sample is measured in tenths of a millimeter which is expressed as a penetration number. An accurately machined aluminium base with in- set spirit level in these bitumen penetration test apparatus has been designed to facilitate penetration tests to be made over a wide surface area of sample, Adjustable feet are provided in the base for leveling and a head support, mounted on a vertical rod which can be adjusted for head, a rack & pinion and pointer assembly provides for fine adjustments of needle or cone tip to sample incorporated a slipping clutch mechanism which makes reading of penetration and subsequent resetting a simple and accurate operation. Each Penetrometer is supplied with a Plunger and Needle weighing 50g for testing bituminous products, one of each 50gm & 100gm weights, and one of each aluminium sampling containers 55mm dia x 53mm ht & 55mm dia x 35mm ht.
Cat No. & Name | Description |
AT-226-1: Bitumen Penetrometer | Bitumen Penetrometer Manually Operated, including adjustable weight arrangement & standard accessories. |
AT-226-2: Bitumen Penetrometer | Automatic Bitumen Penetrometer Electrically Operated (Automatic 5 Seconds Timer), including adjustable weight arrangement & standard accessories.Suitable for Operation on 220V, Single Phase, 50Hz, AC Supply. |
AT-226-3: Bitumen Penetrometer | Automatic Bitumen Penetrometer Electrically Operated (Digital Timer), including adjustable weight arrangement & standard accessories. Suitable for Operation on 220V, Single Phase, 50Hz, AC Supply. |
