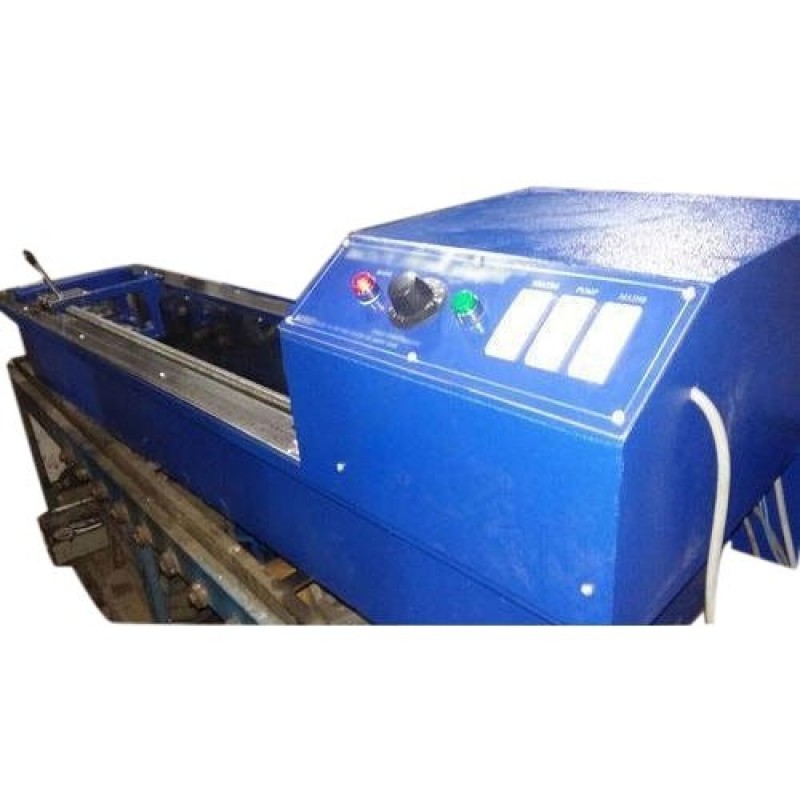

Ductility Testing Machine

Product Details :

Being a leading firm in this industry, we are deeply engaged in offering a high-quality range of Bitumen Lab Testing Ductility Test Apparatus.

Product Description:

(DUCTILITY TEST APPARATUS)

Inflexible pavement construction, bitumen binders are used. It is important that bituminous material forms ductile thin film around the aggregates, which serves as a binder. The binder material not of sufficient ductility renderspervious pavement surface and leads to development of cracks. Therefore it is important to carry out the ductility tests on bitumenous material. Ductility is defined as distance in cms to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is stretched at a rate of 50mm/minute ±25mm per minute at a temperature of 27ºC ± 0.5ºC.

Specifications :

The apparatus consists of a Water bath with a thermostatic heater, and a circulating pump to maintain uniform water temperature. One half of the briquette moulds is fixed on a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating threaded shaft with a clutch. The motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the bath. A pointer fixed to the carrier moves over a scale graduated from 0-110 cm x 1mm fixed on the bath with “0” (zero) of the scale towards the fixed plate side. The rotating shaft has 2 speeds of travel for the bracket, 5cm/min and 1 cm/min., selected by a clutch. Water bath inside is aluminum, it is an insulated water bath. Water bath is provided with a drain. A heater with thermostatic control is fixed inside the water bath. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath, complete with three briquette moulds and one base plate, all made of brass. Operates on 230 volts A.C. single phase.

Salient Features of DUCTILITY TEST APPARATUS

The Machine consist of the following :

• Stainless steel bath
• Temperature controller (Thermostatic/Digital)
• Immersion electric heater
• Constant speed Pump cum stirrer
• Carriage holding up to three standard briquette moulds
• Electric motor with gear mechanism
• Stainless steel scale and pointer
• Control Panel
• Accessories : 1. Thermometer IP 38 C, range 23ºC to 27ºC. 2. Briquette mould with base-plate.

Additional Information:

• Item Code: BLTE-312
• Delivery Time: Ready stock
