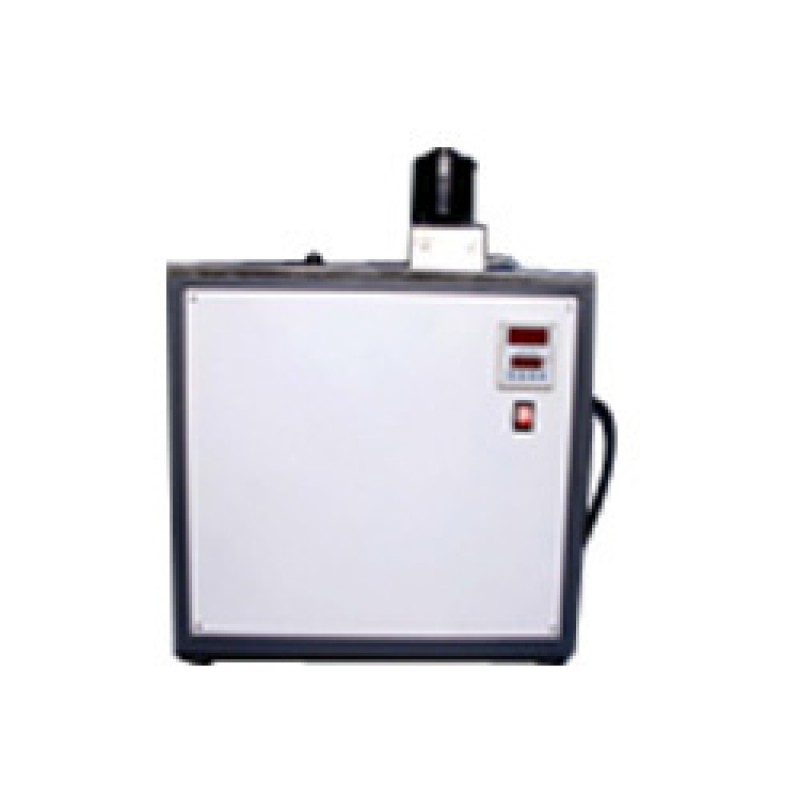

Low Temperature Water Bath

Product Details :

This water bath is used for maintaining 25 deg C with control accuracy of +/- 0.1 deg C for the penetration test as per IS:15462:2004. The bath is Double walled, inner chamber consisting of thick polished stainless steel with cooling coil duly soldered on the outside of the same to ensure perfect cooling effect to achieve low temp. up to + 5 deg c. The outer wall is of thick PCRC sheet duly pretreated and powder coated for longer life. The hollow space between the inner chamber and outer wall is filled with high grade insulation of thickness 75 mm to prevent loss of temperature. The refrigeration system consisting of Hermetically sealed ISI marked KIRLOSKAR OR EQUIVELENT make compressor for minimum noise level and smooth operation, Coupled with other quality components, it ensures a high degree of reliability over a long period. Heating system comprises of ISI marked immersion type heating element for attaining above ambient temperature. The unit is provided with a high performance circulation stirrer to circulate the inside fluid to ensure a constant and uniform temperature throughout. Temperature range 5 deg c to 50 deg c with PID digital temperature controller cum indicator. Chamber size. : 250 x 200 x 200 mm.
