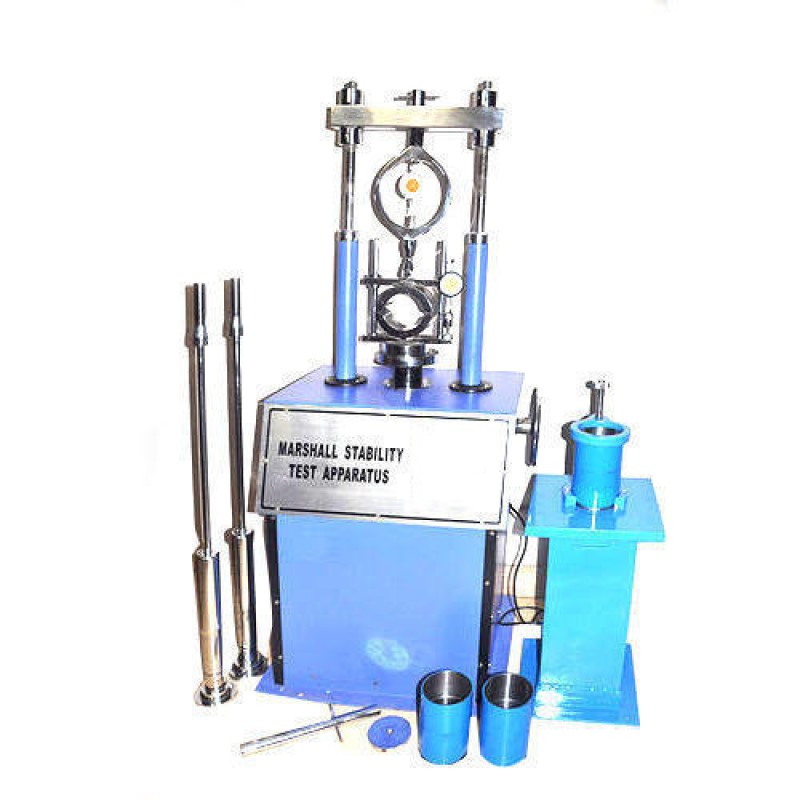

Marshall Stability Test Apparatus

Product Details :

Backed by a rich industrial experience, we are engaged in bringing forth a comprehensive variety of Marshall Stability Test Apparatus.

 Most frequently used test by highway department’s contractors engineers testing laboratories and Governmental agencies is the stability test using Marshall Apparatus.

Generally, this stability test is applicable to hot mix design of bitumen and aggregates with maximum size 25.4 mm.

In this method, the resistance to plastic deformation of cylindrical specimen of bituminous mixture is measured when same is loaded at a periphery at a rate of 5 cm per minute. The test procedure is used in the design and evaluation of bituminous paving mixes.

It consists of

1. Marshall Load Frame - 1 No.

     Capacity 50 kn Speed 50.8 mm /min.

2. Breaking Head Stability Mould -1no

3. Compaction Mould, Steel, Cylindrical

     101.6mmI.D.x 76 mm high - 3 Nos

4. Base plate and Extension collar - 3 Nos

5. Compaction pedestal manual operation - 1 No

6 Compaction hammer - 2 Nos
    Weight 4.5 kg with a free fall of 457 mm

7. Load transfer bar - 1 No
