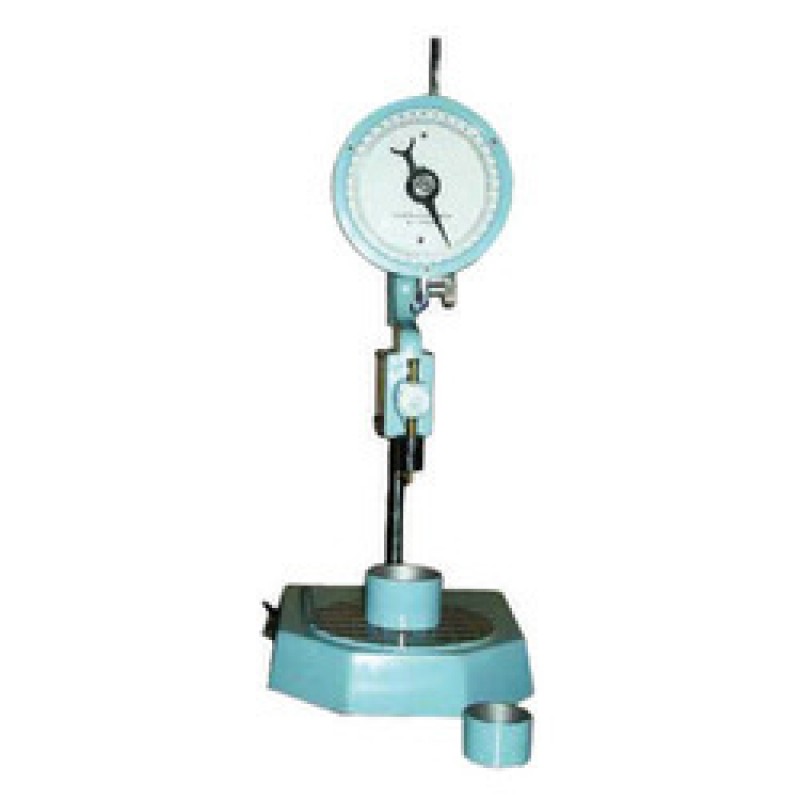

Standard Penetrometer

It is used to determine grade of bitumen. The penetration tests determine consistency of bitumen for the purpose of grading. Depth in units 1/10 of millimeter to which a standard needle having a standard weight will penetrate vertically in a duration of five seconds at a temperature of 25°C determines penetration for gradation.

Specification :

It consists of a vertical pillar mounted on a base provided with leveling screws. The head, together with dial plunger rod a cone (or needle) slides on a pillar and can be clamped at any desired height. A rack and pinion and pointer assemble provides fine adjustment of needle or cone tip to sample. It incorporates a clutch mechanism. Which makes reading of penetration and subsequent resetting a simple and accurate operation. The dial is graduated in 400 1/10 and the millimeter subdivisions and the needle pointer against figures makes easy reading. Supplied with a bitumen penetration needle, ring weight one each 50 gms. and 100 gms. two sample containers.

Accessories:

Penetration cone for empirical estimation of penetration of lubricating grease, petroleum jelly etc. Balance fitted with an under bench weighing facility can be fitted. The balance supplied can also be used as a standard weighing device, thus providing a versatile and comprehensive weighing system in the laboratory.

(i) Cap. 5 Kg (5000gm) Accuracy 0.5 gm (500mg)

(ii) Cap. 15kg (15000gms) Accuracy 1 gm (1000 mg)
