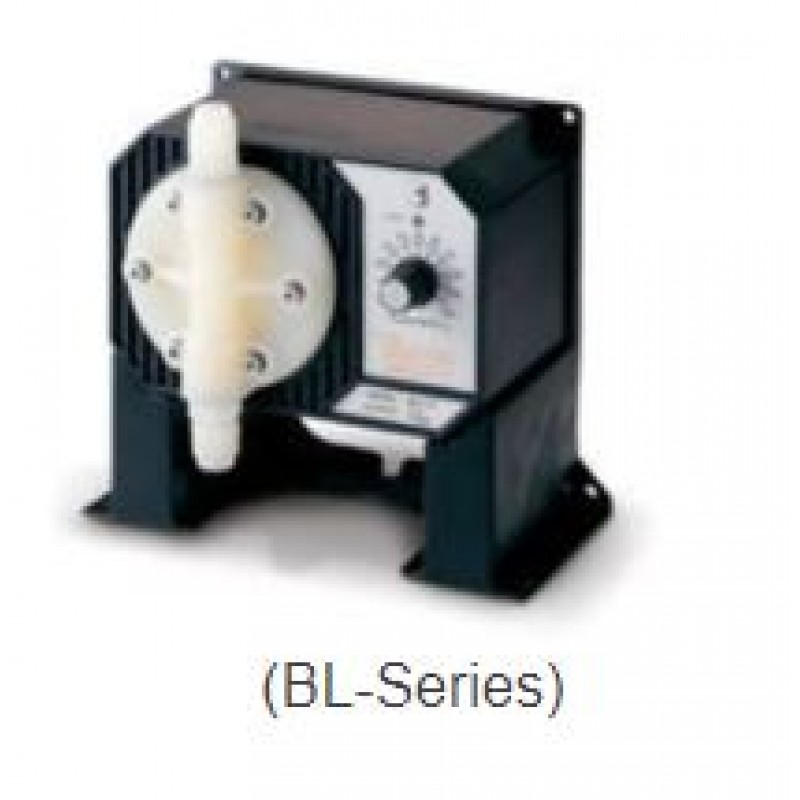

Blackstone Dosing Pump
Product Details :
Product Code : BL-Series
Our modernized infrastructure equipped with state-of-the-art machinery, helps us to manufacture and supply Blackstone Dosing Pump. We manufacture this pump under the strict inspection of expert supervisors using high quality materials and components. A wide range of pumps with different dosing capacities are available for specific dosing needs. Each pump is supplied with discharge and suction valves. We offer this Blackstone Dosing Pump at market leading prices.
Features:
- Resistant to breakage
- Light weight
- Easy to install
Further Details:
- BlackStone's positive displacement solenoid driven pumps use a minimum number of moving parts, therefore reducing the chance of mechanical failure. Part wear and oiling associated with motor driven pumps (ball-bearings, gear drives and cams) are not a concern with these pumps. Blackstone pumps are more accurate than standard pumps due to the positive displacement design ensuring each stroke is identical to the strokes before and after it, thus keeping the flow rate consistent.
- A wide range of Black Stone pumps with different dosing capacities are available for your specific dosing needs. Each pump is supplied with discharge and suction valves.
Specifications:
Max Output | see above chart | |
Rated Pressure | BL 20 | 0.5 bar (7.4 psi) |
BL 15 | 1 bar (14.5 psi) | |
BL 10 | 3 bar (43.5 psi) | |
BL 7 | 3 bar (43.5 psi) | |
BL 5 | 7 bar (101.5 psi) | |
BL 3 | 8 bar (116 psi) | |
BL 1.5 | 13 bar (188.5 psi) | |
Dosing Frequency | 120 strokes/min | |
Pump Casing | fiber-reinforced polypropylene | |
Materials | pump head in PVDF, diaphragm in PTFE, | |
glass ball valves and O-rings in FPM/FKM, | ||
polyethylene 5 x 8 mm tubing | ||
Self-priming | max height: 1.5 m (5 feet) | |
Power Supply | 110/115 VAC or 220/240 VAC, 50/60Hz | |
Max Power Consumption | approximately 200 W | |
Protection | IP65 | |
Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing | |
Dimensions | 194 x 165 x 121 mm (7.6 x 6.5 x 4.8’’) | |
Weight | approx. 3 kg (6.6 lb.) |
