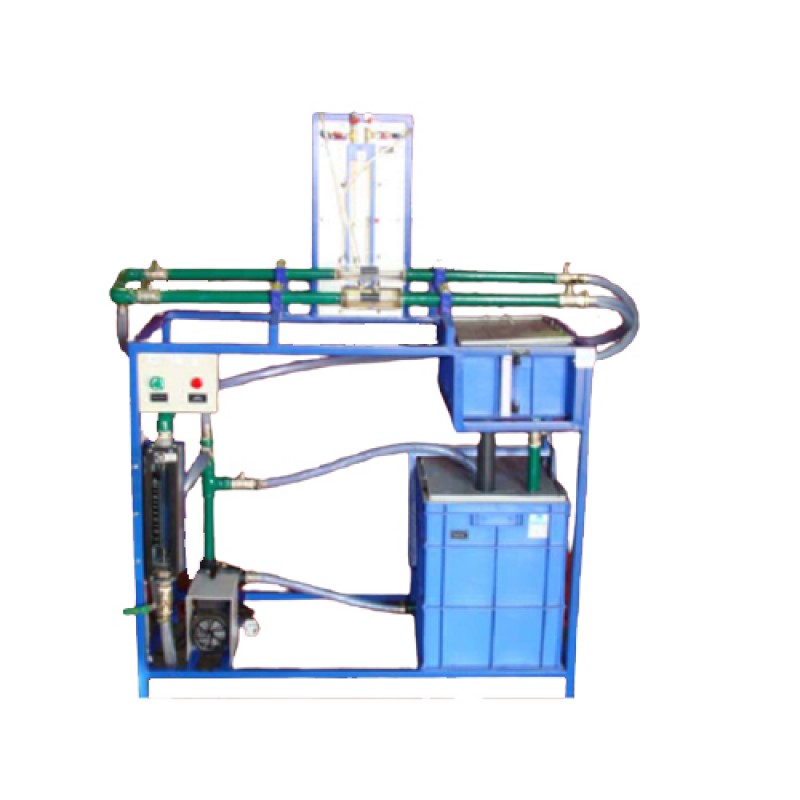

CALIBRATION VENTURIMETER (FLM 008)

S P Tech Equipments manufactured Calibration Venturimeter is self-sufficient unit to study the characteristics of orifice meter and venturimeter. The calibration of these meters can be study by comparing with actual flow measured in measuring tank. The orifice & Venturi is made of clear acrylic material to understand its operation phenomenon. Venturimeter & Orifice meter is mounted in such fashion that at a time we can select one of them & conduct the experiment. An optional rotameter is placed in supply line of pump to operating table. Pressure tappings are provided at appropriate location for measurement of differential pressure with Mercury U tube manometer. Variable flow can be achieved for various reading set. For the particular flow we can compare the reading.
