Lovibond Tintometer Model Fx Spectrocolorimeter

Model Fx

Benchtop spectrophotometer optimised for analysis of edible oils

Highlights

• Guaranteed site-to-site comparability with accurate and precise spectrophotometry
• Avoid inconsistent readings with controlled sample temperature

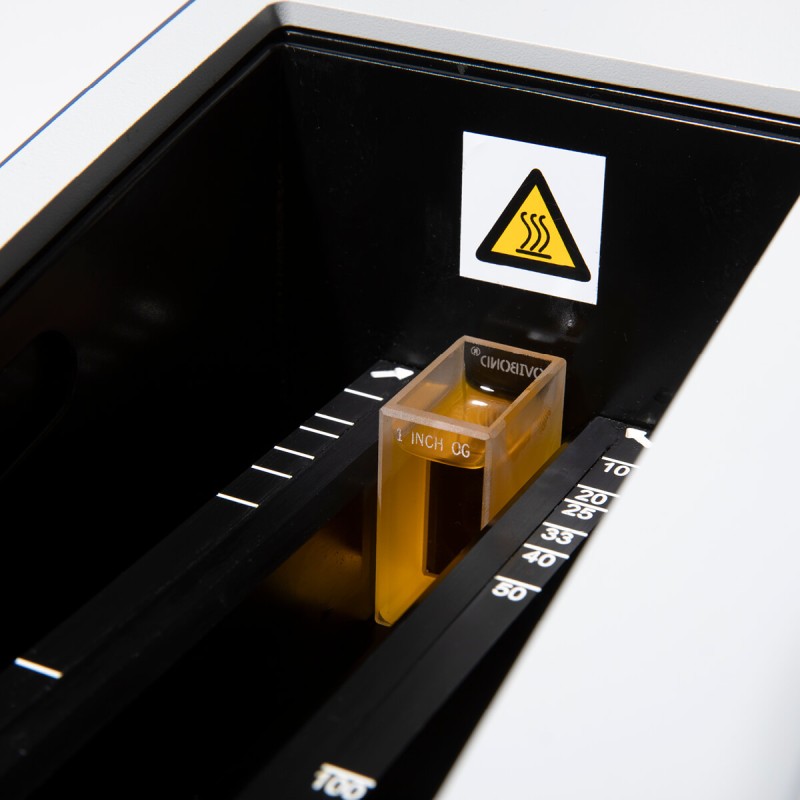

• Ensure measurement consistency with easy to clean, removable sample chamber
• Save benchtop space in your QC laboratory with a smaller instrument footprint

The Lovibond® Model Fx solves the temperature problems associated with consistently measuring the colour of edible oils and addresses the need for quickly delivering accurate results. Misreading from crystallisation can be eliminated with its ability to keep the oil at a constant temperature and report the temperature of the sample.

Applications :

Edible Oils and Fats

Guaranteed Temperature Consistency

The Lovibond® Model Fx solves the temperature problems associated with consistently measuring the colour of edible oils and addresses the need for quickly delivering accurate results. If samples are not properly prepared before measurement, turbidity caused by the crystallisation of the samples will lead to inconsistent readings. The integrated sample cell heater ensures consistent and uniform temperature throughout the sample resulting inaccurate measurements.



Optimised for Production Environment

Reliable and repeatable test results are key to ensuring final product quality and minimise production costs. Speed of analysis is vital for efficient process control. The simplicity of operation helps reduce errors and increase productivity. The instrument’s aluminium housing is chemical resistant and intended to withstand the hazards of the production environment.



Save Costs, Misinterpretation and Potential Disputes

Suppliers and buyers need a common language to communicate and determine product quality. The Lovibond® Model Fx automatically reports key measurements to ensure that data is collected consistently and is reproducible by different users or across multiple sites.  Should disagreement occur between supplier and customer, this additional information can help resolve any dispute, saving time and costs.



Ensures Compliance to Standards

The Lovibond® Model Fx measures colour according to the Lovibond® RYBN, Lovibond® RY, Lovibond® RY10:1, AOCS Tintometer® RY, Chlorophyll & Beta-Carotene scales which are commonly used in the Edible Oil Industry. The accuracy, repeatability and reproducibility of data provided by the instrument allow for tighter colour specifications and greater colour consistency, giving companies the confidence needed to make important decisions regarding high-value commodities and refining operations.



Technical Data:

Applicable StandardAOCS Cc 8d-55AOCS Cc 13b-45AOCS Cc 13d-55AOCS Cc 13e-92AOCS Cc 13j-97BS684BS684 Section 2.20Chinese GB/T 22460-2008IS 548 (part 1)-2010ISO 15305ISO 27608MS 252 : Part 16MS 817 : Part 12Colour TypeTransparentWavelength Range380 - 780 nmWavelength Accuracy0.2 nmSpectral Scope< 15 nmPhotometric Range0 - 100 % TPhotometric Linearity± 0.01 % TStray Light< 0.01 % TDetectorSpectrometerInterfacesUSBRS 232Instrument HousingAluminiumRepeatability± 0.5 % TPortabilityBenchtopTouchscreenNoInput Voltage110 VAC, 250 VAC, 60 W (24 V)Environmental ConditionsTemperature: +5°C - 40°C ; Humidity: Up To 90 % non condensingStock ConditionsTemperature: -20°C - 85°C ; Humidity: Up To 90 % non condensingComplianceCELanguages User InterfaceEnglish, German, French, Spanish, Italian, Portuguese, Russian, Japanese, ChineseDimensions301 x 152 x 331 mmWeight5.16 kg



Colour Scales :

TitleScale Path LengthScale RangeScale ResolutionApplicable StandardAdd to quotation cartLovibond® 10:110 mm, 1/2'', 1'', 2'' 5 1/4''0.1 - 7.0 R, 1.0 - 70 Y0.1 unit R, 1 unit YChinese GB/T 22460-2008Red and Yellow Values to Indian Standard: Castor, Ground Nut and Coconut Oil1"0 - 79.9 R, 0 - 79.9 Y, 0 - 49.9 B, 0 - 3.9 N IS 548 (part 1)-2010Castor, Ground Nut, Coconut Oil1/4"0 - 70 R, 0 - 70 Y, 0 - 40 B, 0 - 3.9 N IS 548 (part 1)-2010Red and Yellow Values to Indian Standard1/4"0 - 79.9 R, 0 - 79.9 Y, 0 - 49.9 B, 0 - 3.9 N IS 548 (part 1)-2010AOCS-Tintometer Colour1/4", 1", 5 1/4"0 - 20 R, 0 - 70 R0.1 unit R, 1 unit YAOCS Cc 8d-55, AOCS Cc 13b-45, AOCS Cc 13j-97Lovibond® RYBN Colour1/16" - 6"0 - 70 R, 0 - 70 Y, 0 - 30 B, 0 - 3 N0.1 unitsAOCS Cc 13e-92, AOCS Cc 13j-97, BS684, ISO 15305, ISO 27608, MS 252 : Part 16, MS 817 : Part 12Chlorophyll10 mmunlimited1 ppmAOCS Cc 13d-55Beta Carotene10 mm0 - 1000 ppm1 ppmBS684 Section 2.20Red and Yellow Values to Indian Standard1/4"0 - 79.9 R, 0 - 79.9 Y, 0 - 49.9 B, 0 - 3.9 N IS 548 (part 1)-2010
