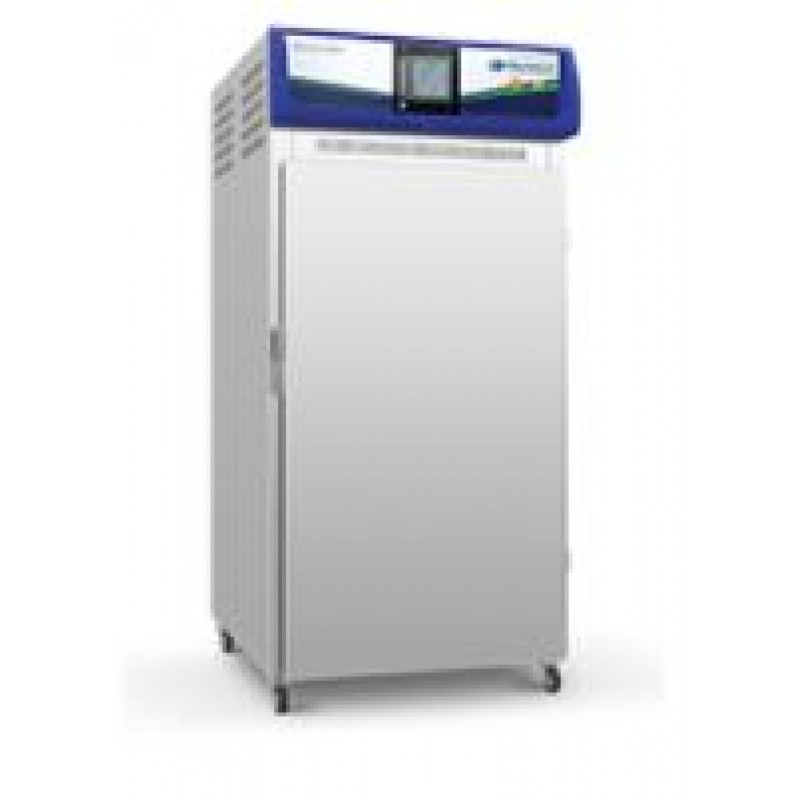

COOLING CABINET (2 °C TO 8 °C)
Product Details :
Thermolab Cooling Cabinets are of superior quality and precise control best suited for storage of reference standards, raw materials and vaccine storage . Thermolab Cooling Cabinets feature various safety feature, audio visual alarms, 21 CFR part 11 compliant software and are the preferred choice in cooling solutions.
Standard Features:
- Double walled modular structure with 3” thick PUF insulation
- Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
- Interior illumination
- Inside full length observation glass door with secure gasket
- Handle and hinges for positive sealing with lock and key arrangement
- Racks & trays – Stainless Steel with adjustable height
- 65 mm Port Hole with rubber seal to insert sensors for validation purpose
- Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant having state of art by-pass system for continuous run of compressor
- PLC based control system with 7” colour touchscreen HMI.
- Safety controller sensor to cut off the supply in case of overshoot and undershoot of Temperature giving audio visual alarm
- Network connectivity via Ethernet for web based online remote monitoring
- Complete safety and alarm system
- Complete with IQ, OQ, PQ, Documents, Operations and Maintenance manuals
- Works on 23V AC single phase 50Hz
Optional Features:
- 21 CFR Part 11 compliance window based communication software for data management
- Stand by refrigeration system (Except for 90 Ltrs.)
- Scanner 4 point temperature scanner complete with sensors and printer interface and data storage facility.
- Door Access Security system
- Mobile Alert system
Specifications:
- Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
- GMP Model(G) : Inside S.S. 304 & outside S.S. 304
- Temperature Range : 2 °C to 8 °C
- Temperature Accuracy : ± 1.0 °C
- Temp Uniformity : ± 2.0 °C
Documentation:
- Complete with IQ, OQ, PQ documents
- Operation and Maintenance manuals
- Training to end users
Technical Data:
| Models | Internal | Dimensions in cms | Max No. of Trays | |||||
|---|---|---|---|---|---|---|---|---|
| (S)OR(G) | Cu.Ft/Ltrs. | Internal | External | |||||
| W | D | H | W | D | H | |||
| TC 90 S/G | 3/90 | 45 | 40 | 50 | 60 | 82 | 104 | 3 |
| TC 200/G | 8/200 | 60 | 63 | 60 | 75 | 106.5 | 117 | 4 |
| TC 325/G | 12/325 | 60 | 60 | 90 | 75 | 106.5 | 147 | 6 |
| TC 400 S/G | 16/400 | 60 | 63 | 106 | 75 | 106.5 | 163 | 7 |
| TC 600 S/G | 22/600 | 80 | 80 | 95 | 95 | 126.5 | 154 | 6 |
| TC 800 S/G | 28/800 | 80 | 80 | 125 | 95 | 126.5 | 187 | 9 |
| TC 1000 S/G | 32/1000 | 80 | 8 | 157 | 95 | 126.5 | 219 | 11 |
* TC 90 is a table top model.
