CUT SECTION MODEL OF A FOUR CYLINDER FOUR STROKE

AUTOMOBILE DIESEL ENGINE (CUT)

SYSTEM DESCRIPTION

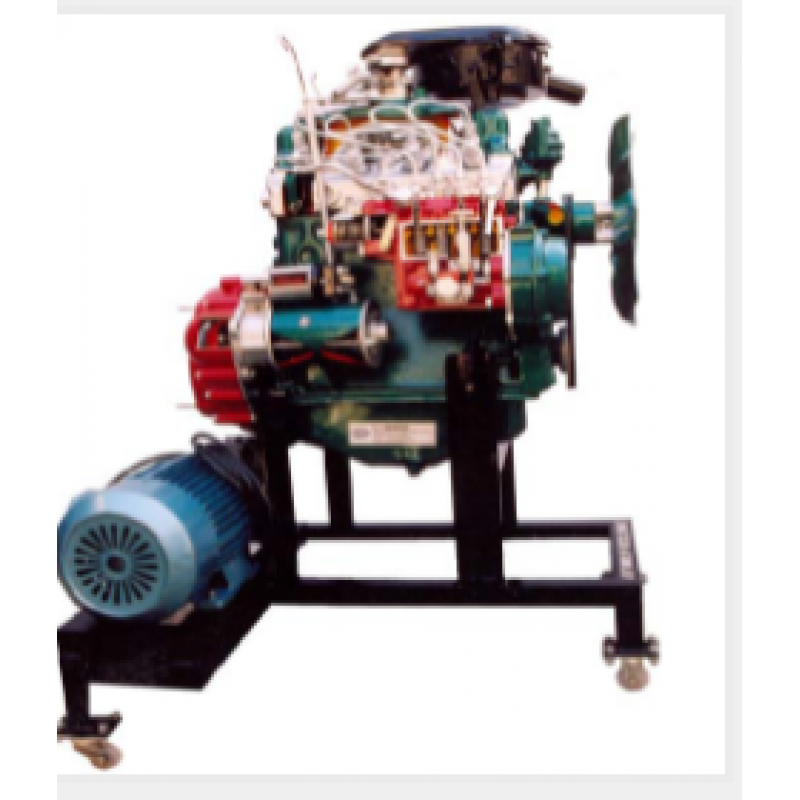

This system will consist of original full size but used/reconditioned automotive four-cylinder four stroke Diesel engine. S P Tech Equipments have designed the systems, keeping in consideration that all components like piston, cylinder, crank shaft, Rocker Arm, tappet, valve, fuel injection pump, injectors are exposed. The system is repainted with colors & cutting marks. This makes easy understanding of operation of system. The system is driven by an electric motor with speed reduction gearbox to make the rotation up to 10-15 RPM (Optional). The system is mounted on a sturdy M.S. structure.

LIST OF EXPERIMENTS

•  Study of construction of Single Cylinder Four Stroke Diesel Engine
•  Study of internal parts
• Demonstration of Operation of Engine in working condition at lower speed. (Optional)
