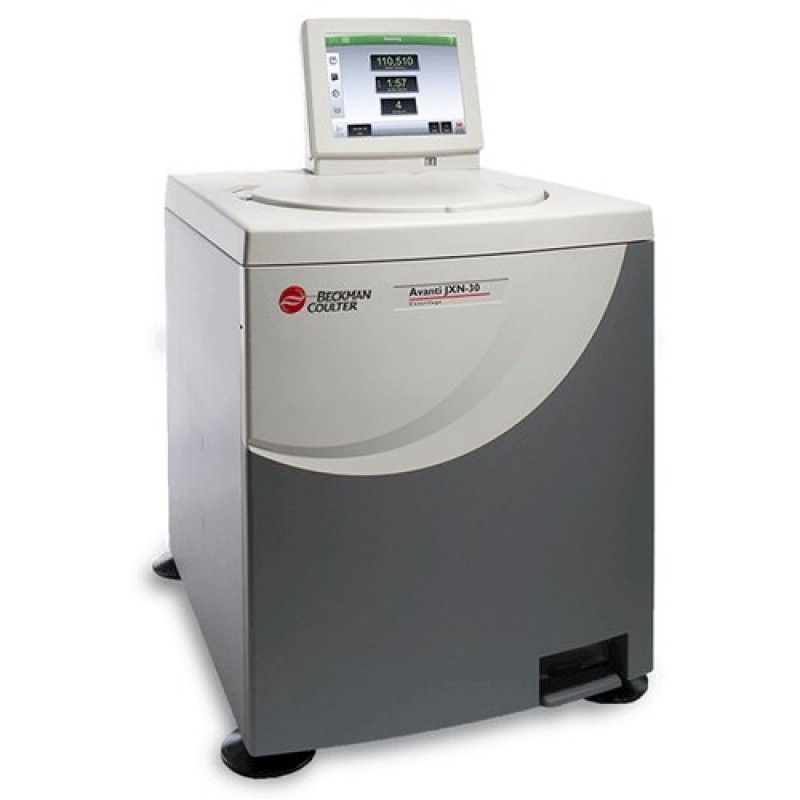

Beckman Coulter Avanti JXN 30 Series High Speed Centrifuge
Product Details:
Brand | Beckman Coulter |
Material | Steel, Structural Foam, Plastic |
Weight | 310 kg (683.4 lb) |
Platform | Avanti |
Maximum Speed | 30,000 rpm |
Maximum g-Force | 110510 x g |
BioSafe | Yes |
Acceleration | 11 acceleration profiles |
Deceleration | 12 profiles |
Speed Control | +/- 10 rpm of set speed or 0.1%, whichever is greater |
Timed Run | 1 min to 99 hrs, 59 mins |
Max Capacity Volume Range | 1 - 4 L |
Refrigeration System | Non-CFC, non-ozone depleting refrigerant |
Rotor ID | Automatic |
Zonal Capability | Yes |
Pollution Degree | 2 |
Environmental Condition | -20 deg C to 40 deg C in 1 deg increments |
Software | Virtual Network Computing (VNC), Mobile Fuge app for Apple iOS and Android |
Finish | Powder Coat Paint |
Width | 71 cm (28 in) |
Depth | 86 cm (33.9 in) |
Height | 86 cm (33.9 in) |
Clearances | 7.6 cm: side & rear |
Humidity Restrictions | 80% (non-condensing) |
Power Requirements | 200-240V AC , 50/60 Hz |
Part Number | B34193 |
It covers all of the applications of a floor-standing centrifuge. Master daily lab challenges with the advanced levels of networking, reliable performance, and improved BioSafety* found in the Avanti JXN-30.
- The additional power of the MobileFuge app gives additional flexibility, including the ability to:
- Access and monitor data remotely
- Receive system notifications via email
- Manage permissions
- Address error handling and more via networks or mobile devices
Features:
Easy to use software:
- Simultaneous display of set and actual run conditions
- Rotor selection by name (not code)
- 11 acceleration/12 deceleration rates
- Delay start
- Run times to 99:59, Hold, and ω2t integrator for applications requiring precise reproducibility
Powerful data management:
- Up to 1,000 user-defined programs
- Storage for numerous protocols
- Password protection for up to 50 unique user profiles
- Networking capability for multiple instruments
- Data logging and real-time run graphing
15" LED Touchscreen Monitor:
- Built to withstand 10 million touches
- Backlight life of 50,000 hours
- LED backlight for 20% power saving and environmental protection
Triple Redundant Safety Systems:
- Windage, inertia, and rotor ID checks via magnets offer triple redundant safety
- Friction Reduction System (FRS) for quicker, quieter, and cooler runs
- High-torque, Switched Reluctance (SR) drive cycle for shorter cycle times
Other Variants are:
Model Number | Avanti JXN-30 IVD Centrifuge | Avanti JXN-30 Three Phase Centrifuge | Avanti JXN-30 IVD Centrifuge | Avanti JXN-30 Three Phase IVD Centrifuge | Avanti JXN 30 Centriguge |
Part Number | B38624 | B34192 | B38621 | B38620 | B37913 |
Power Requirements | 230 VAC, 50 Hz | 220 VAC, 50 Hz | 200-240 VAC , 50/60 Hz | 220 VAC, 50 Hz |
