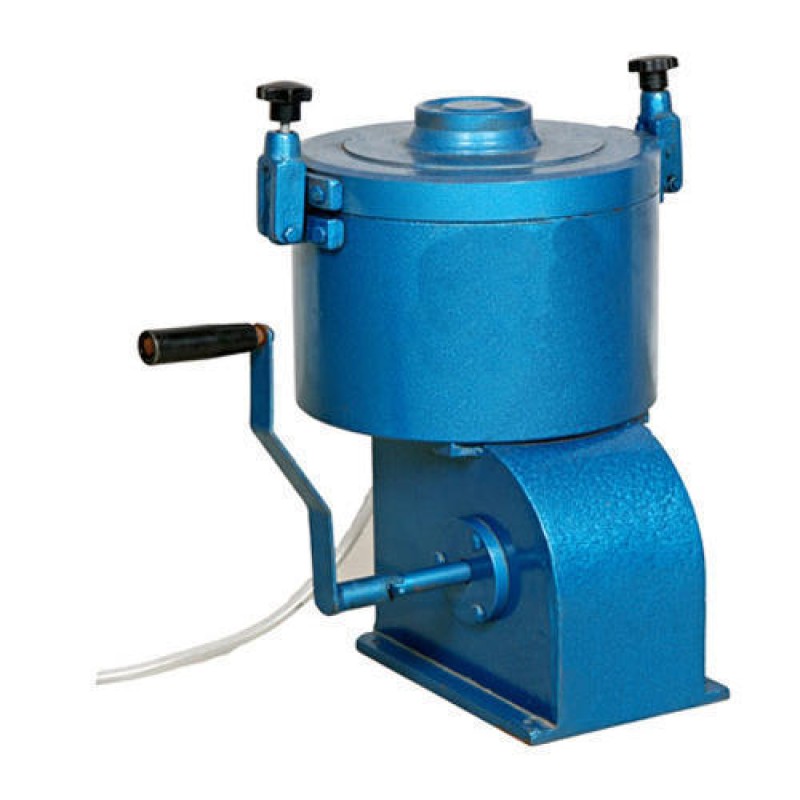

Centrifuge Extractor

Product Details:

Capacity	3500 r.p.m
Installation Services	Yes
Voltage	230 Volts
Phase	Single
Rotor Bowl Material	Cast Aluminium
Electric Motor	0.25 HP

Centrifuge Extractor this is used for a quantitative determination of bitumen in hot-mixed paving mixtures and pavement samples. The centrifuge extractor is a safe, portable, corrosion-resistant model, which can be used both in the field and the laboratory it consists of a removable cast aluminum rotor bowl mounted on a vertical shaft. A filter paper disc is pressed in between the rotor bowl and cover plate by a knurled nut. The bowl assembly is enclosed in a housing mounted on a cast aluminum body The gears operate in oil bath with splash lubrication. Complete with 25 filter discs.

Additional Information:
·         Item Code: RSEP-066
