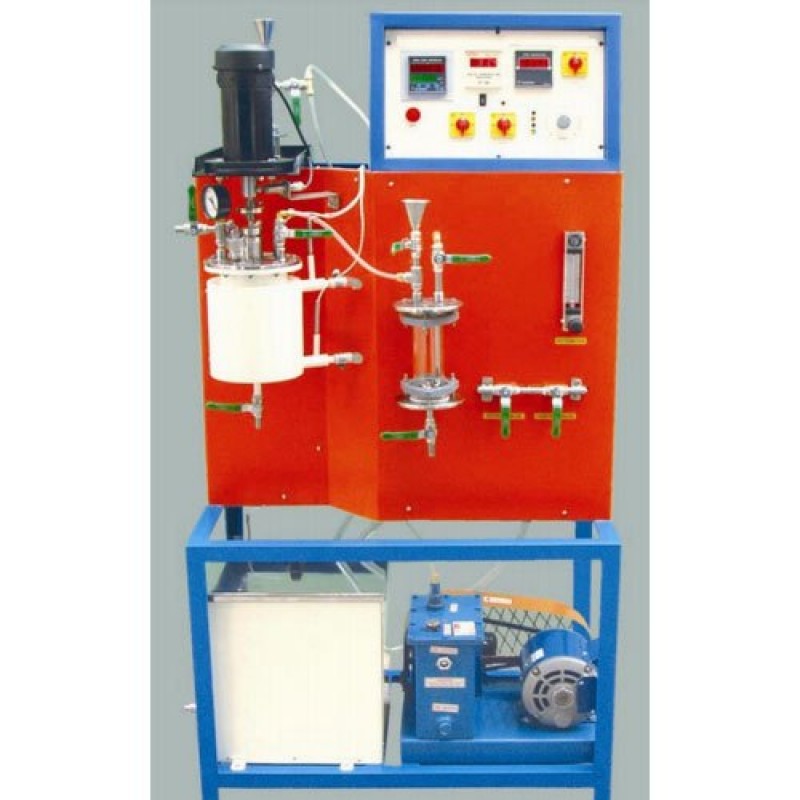

Emulsion Polymerisation Set-Up Apparatus

Product Details:

Description
The set-up is used to carry out the emulsion polymerization involving polymerization of a unsaturated monomer like Styrene. Emulsion is of the type: oil in water, monomer is oil soluble & the initiator is watersoluble & an emulsifier is used to create a stable emulsion. Apparatus can be used to generate the kinetic data for emulsion polymerization under various operating conditions like temperature, emulsifier concentration etc. Polymerization is carried out under the atmosphere of air free nitrogen. The set-up consists of jacketed type SS reactor fitted with a variable speed agitator & baffles. Hot water from a digitally controlled water bath is circulated in the jacket using a pump. Metered quantity of nitrogen gas from a cylinder passes through a de-oxygenation column & allowed to enter in the reactor. Air has to be evacuated using a vacuum pump to create vacuum up to 30mm of Hg before passing the nitrogen supply. Initiator from reservoir is supplied to the reactor under pressure. Set-up is complete & self-contained with sampling ports
Experimentation/Learning Objectives The parameter studies are conducted involving studies of: • Effect of RPM on conversion. • Effect of Initiator concentration. • Effect of monomer concentration • Effect of emulsifier concentration.
Utilities Required The parameter studies are conducted involving studies of: • Effect of RPM on conversion. • Effect of Initiator concentration. • Effect of monomer concentration • Effect of emulsifier concentration.
Technical Details
Reactor (Jacketed Type) : Material Stainless Steel Total volume of Reactor 1.5-2 Ltrs. (approx.) • Agitator : Material Stainless Steel Impeller (2 paddles) fitted with Stainless Steel Shaft coupled to DC Motor with Thyristor controlled DC Drive. • Flow Measurement : By Rotameter (for Nitrogen Gas) • De-Oxygenation Column : Compatible capacity. • Hot Water Tank : Material Stainless Steel, Double Wall, insulated with ceramic wool. • Hot water circulation : Magnetic Pump made of Polypropylene. Maximum working temperature is 80°C. • Heaters : Nichrome wire heater. • Initiator Reservoir : Capacity (25-50) ml. • Temperature Sensors : RTD PT-100 type- 5 Nos. • Control panel comprising of : Digital Temp. Controller : PID Controller, 0-199.9°C (For hot water tank) Digital Temp. Indicator : 0-199.9°C with multi-channel switch RPM Indicator : Digital, Non-contact type. With standard make on/off switch, Mains Indicator etc. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid
