LIQUID PHASE CHEMICAL REACTOR APPARATUS

Product Details:

Description

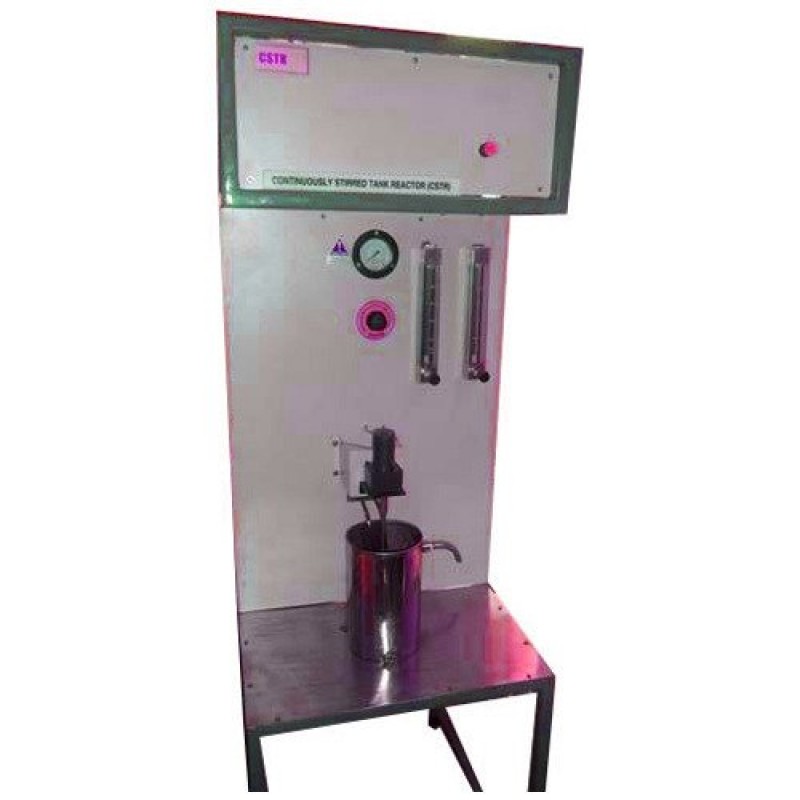

Present set-up consists of a reactor vessel fitted with variable speed agitator and detachable baffles. This unit is designed to study chemical kinetics. Reactants are fed to the reactor, using pump and flow is regulated and monitored by individual Rotameter. An adjustable overflow device is provided in the reactor to conduct the experiment on different reactor volume. A Stainless Steel Coil is immersed in the reactor through which the hot water supply is circulated. Temperature of the hot water is controlled by means of Temperature Controller and it enables the students to enhance the experimentation capabilitie
Experimentation/Learning Objectives To study the chemical kinetics. • To study the effect of residence time. • To study the effect of mixing speed. • To study the effect of temperature on chemical reaction.
Utilities Required • Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp combined socket with earth connection. Earth voltage should be less than 5 volts. • Water Supply • Floor Drain. • Floor Area Required : 1.5 m x 1 m. • Instruments, Laboratory wares and Chemicals required for analysis as per the system adopte
Technical Details
Reactor : Material SS, Capacity (1-2) Ltrs. • Agitator : Variable speed with speed control facility from 0 – 150 RPM. • Impeller : 4 Square bladed (1 No.), Material- Stainless Steel. • Baffles : Detachable. • Piping : PVC. • Feed Tank (2Nos.) : Material Stainless Steel, Capacity 20 Ltrs. Each • Discharge Tank (1No.) : Material PVC, Capacity 40 Ltrs. • Water Bath : Material Stainless Steel, Double wall, insulated with Ceramic Wool. • Heater : Nichrome wire Heater • Pumps (3Nos.) : 2 Nos. (for Chemical), 1 No. (for hot water circulation). • Control Panel comprises of : Digital Temp. Controller : PID Controller, 0-200°C (For Water Bath) With Standard make on/off switch, Mains Indicator etc. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint
