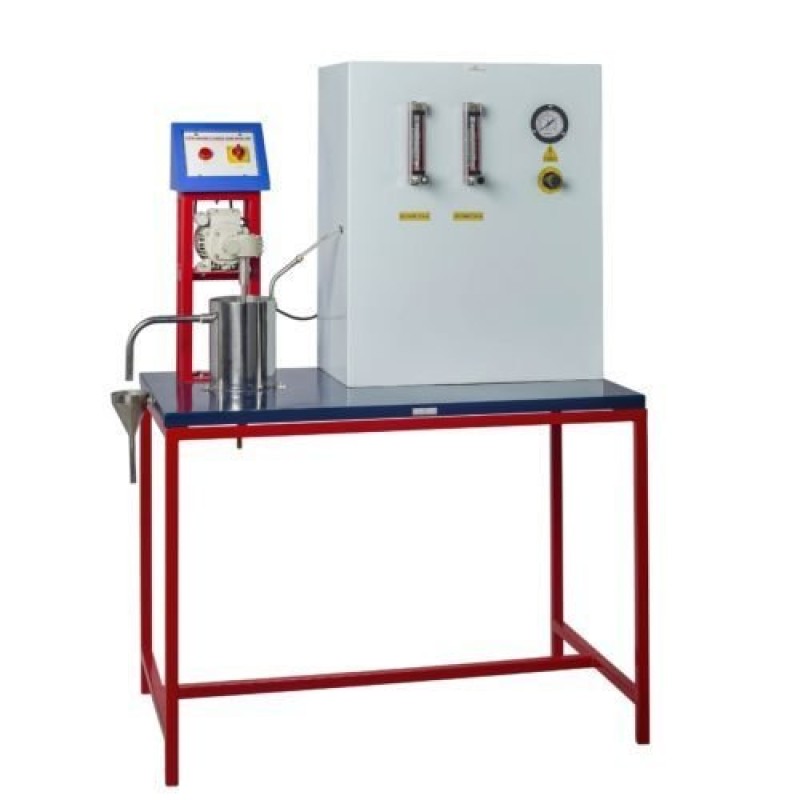

R.T.D Studies In Packed Bed Reactor Apparatus

Product Details:
Description
Axial diffusion and dispersion of fluid in packed beds are important for design and operation of separation equipment and Chemicals reactors. The tracer technique, the most widely used method for the study of axial dispersion. In stimulus response experimentation, we perturb the system using pulse input of tracer and then see how the system reacts or responds to this stimulus. The analysis of the response gives the desired information about the system. The setup consists of a glass column packed with Rasching Rings and one feed tank. Water is fed to the reactor through liquid distributor, fitted at the bottom of the column. Rotameter is provided to measure the flow of water. The flow rate can be adjusted by operating the needle valve provided on Rotameter. For understanding the R.T.D. characteristics, a special arrangement to inject tracer into the lower end of reactor, using a syringe, is provided. Samples can be taken periodically from the top outlet of reactor. Pressure Regulator & Pressure Gauge are fitted in the compressed air line.
Experimentation/Learning Objectives • To plot RTD curve for Packed Bed Reactor. • To determine the Dispersion No.
Utilities Required • Compressed Air Supply: 0.25 CFM@1 bar • Water Supply. • Floor Drain. • Floor Area Required : 1.0 m x 1.0 m. • Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.
Technical Details
• Reactor Column : Material Borosilicate Glass
• Packing : Rasching Rings, Material Borosilicate Glass. Size 8-10mm (approx)
• Feed Tank : Material Stainless Steel, Capacity 20 Ltrs.
• Feed Circulation : By compressed air.
• Flow Measurement : Rotameter.
• Piping : Stainless Steel and PU pipe.
• Pressure Regulator : 0-2 Kg/cm2
• Pressure Gauge : Bourdon type 0-2 Kg/cm2
• Stop Watch : Electronic
• Arrangement is done to inject tracer into the lower end of reactor
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industr
