Vee Bee Consistometer

Product Details :

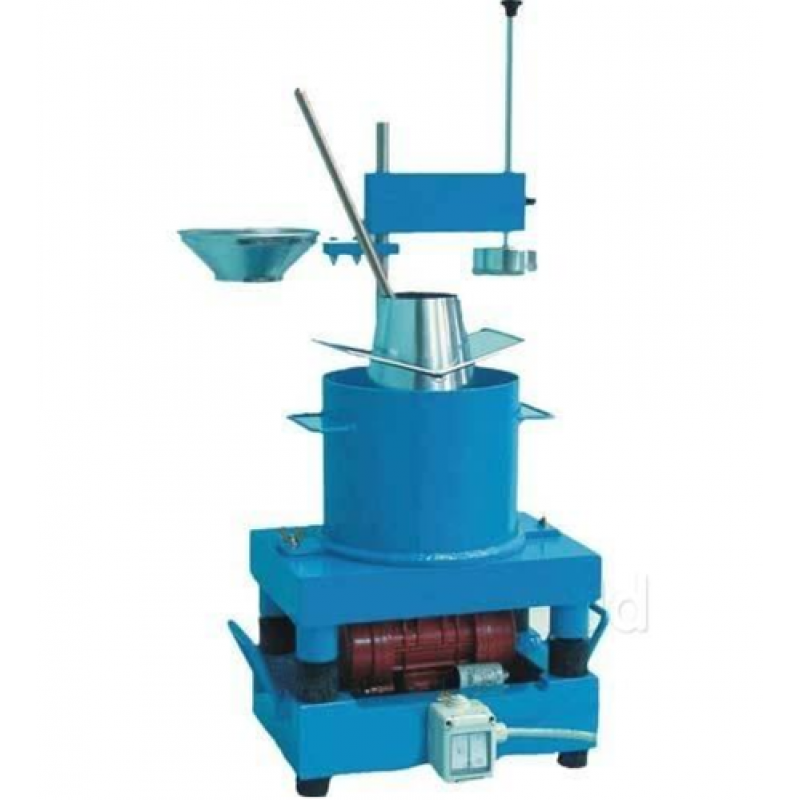

Vee Bee Consistometer

The instrument is used for workability as well consistency of fresh concrete. A slump cone and a graduated rod supplied with the instrument helps the operator to find out slump values and Vibration Table with container and acrylic disc. Is used to find outwork-ability of concrete expressed in Vee Bee degrees, which is defined as the time in seconds to complete required vibrating at which the fresh concrete flows out sufficiently to come in contract of the entire face of acrylic disc.

Components: The equipment consists of: A holder is fixed to the base into which a swivel arm is telescoped with funnel and guide sleeve. The swivel arm is also detachable from the vibrating Table. A graduated rod is fixed on a swivel alarm and at its end a plastic disc is screwed. The divisions of scale on the rod record the slump of the concrete in millimeters. Supplied complete with a sheet metal container with lifting handles which can easily be fixed to the vibrating Table.

Additional Information:

• Item Code: ASI-513
