Cold Storage Test Rig

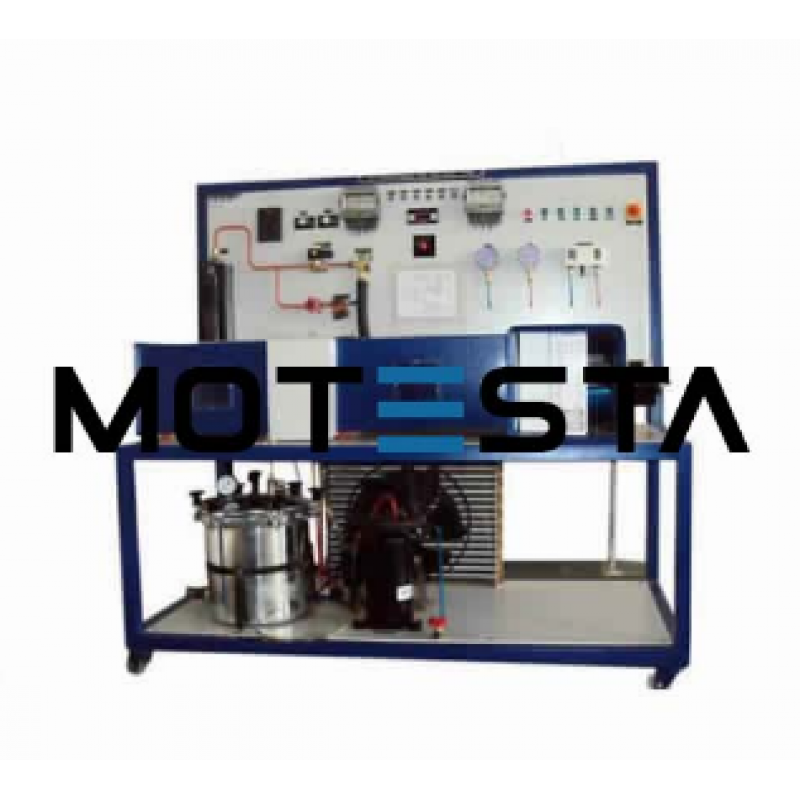

This Laboratory scale working model housed on a M.S. Square tube frame and further mounted on a wheels(CI) with instrumentation panel is used. i) To study the vapor compression refrigeration cycle ii) To calculate Co-efficient of performance (C.O.P.)

01. Hermitically Sealed Compressor
Capacity	: 1/3 TON
02. Air Cooled Condenser
Capacity	: 1/2 HP
03. Condenser Cooling Fan
Capacity	: 1/83 HP
04. Rotameter (Referigerant R 12)	: 1 No
05. Cold Storage Cabinet	: 5 Cft With Insulation
06. Filter Drier	: DM 50 (1/4
07. Energy Meter	: 1 NO
08. Thermostatic Expansion Valve	: 1 NO.
09. Pressure / Compound Gauges	: 1 NO. each
Range	: 0 to 300 psi /- 30 Hg to 150 psi
10. Measuring Instruments
Digital Temperature Indicator	:-30 to 199.9 deg.c.
Optional	: At Extra Cost Line Voltage Corrector
Capacity	: 2KVA
Output	: 230V+/- 10%
