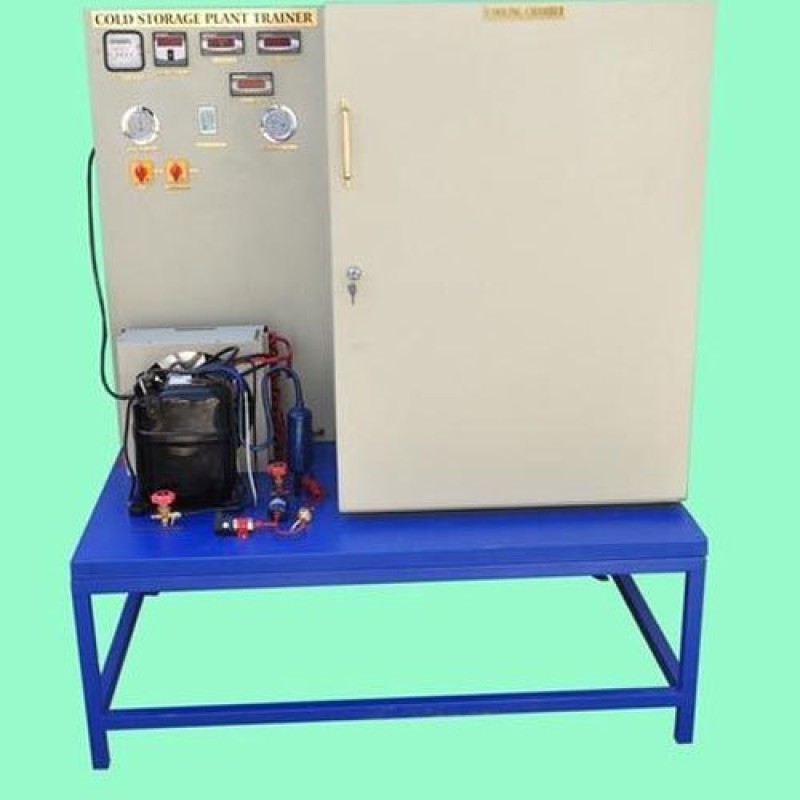

Cold Storage Trainer
Product Details :
Brand | Reliant Lab |
Compressor | Emerson / Tecemshah Hermetically sealed compressor capacity. |
Rotameter | Suitable for Compressor capacity Glass tube Rotameter (Digital type) |
Compressor Capacity | 0.8 Ton |
Condenser | Suitable for above compressor with suitable cooling fan & Fins and copper Tube Air Cooled. |
Structure Size | 30mm x30mm x 48mm (Approx.) |
Cold Storage Room | Inner chamber GP Sheet & Outer Stainless steel with insulated |
Expansion Device | Capillary Tube & Filter / Drier |
Pressure Gauge | 2 Nos. for high and low pressure. |
Service valves | 4 Nos. Hand set valve |
Refrigerant | Freon -12 /134a |
Owing to the years of industrial experience, we have been able to provide our valued clients with a wide range of Cold Storage Trainer.
Details:
This unit consists of a hermetically sealed compressor with air cooled condenser. A capillary or expansion valves are next to condensers followed by medium temperature evaporators. Electrical energy supplied to the compressor can be measured by energy meter. This Test Rig is used to perform the following experiments.
EXPERIMENTS - To determine COP of unit.
Control Panel Comprising of:
- Main Switch
- Voltmeter Digital type – 1 Nos.
- Amp. Meter Digital type – 1 Nos.
- Energy Meter for Compressor input.
- Switches Indication Lights etc.
- H.P. / L.P. cut out
- Digital Temperature Indicator: 5 Nos.
- Temperature Sensor (Thermocouple) : 5 Nos.
- Voltage - Single Phase 220 Volts 50Hz. AC Supply
The equipment is mounted on a sturdy frame with control panel
