Component Cleanliness Cabinet
Product Details:

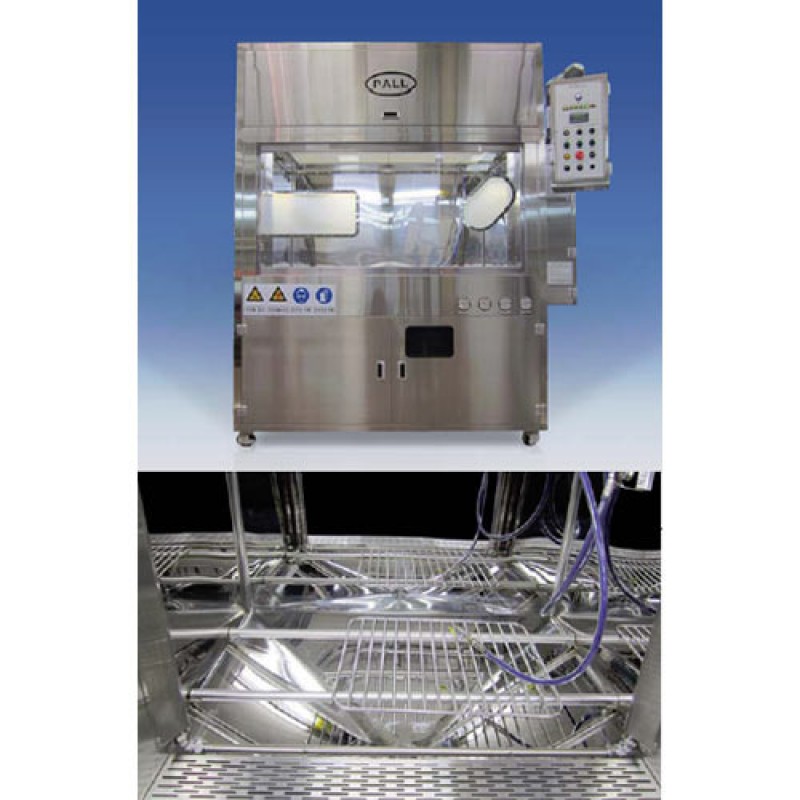

The Pall PCC81-KC Cleanliness Cabinet facilitates the accurate, reliable and repeatable preparation of gravimetric membranes for the determination of component cleanliness. The PCC81-KC enables operators to access the cleanliness level of the manufactured parts and components in accordance to ISO18413, ISO16232 and VDA 19 procedures.
Features:
• Large work area for large manufactured parts
• Reliable and repeatable measurements
• HEPA filtered laminar air flow in a self contained super polished stainless steel working area
• Simple to install and operate
• Fully portable requiring only a power source
• Designed and built to ISO Pressure Washing standard 16232
• Solvent dispensing gun with fluid volume dispensing counter
• Pressurized solvent dispensing and recycling circuits
• Gravimetric membrane holder
• Auto Wall Wash function
• PLC controlled operating parameters (option)
• Auto lifting arm for large heavy parts (option)
General Specifications:
• Polished stainless steel extraction enclosure
• Controlled cleanliness environment (Class 5 per ISO 14644-1)
• HEPA filter rating: 0.3 μm absolute
• Control panel with colored touch screen
• Solvent filter rating: 0.2 μm absolute
• Test membrane holder in the power zone
• Noise level in working conditions : < 80 dB

Additional Information:

• Item Code: Pall-PCC81-KC
