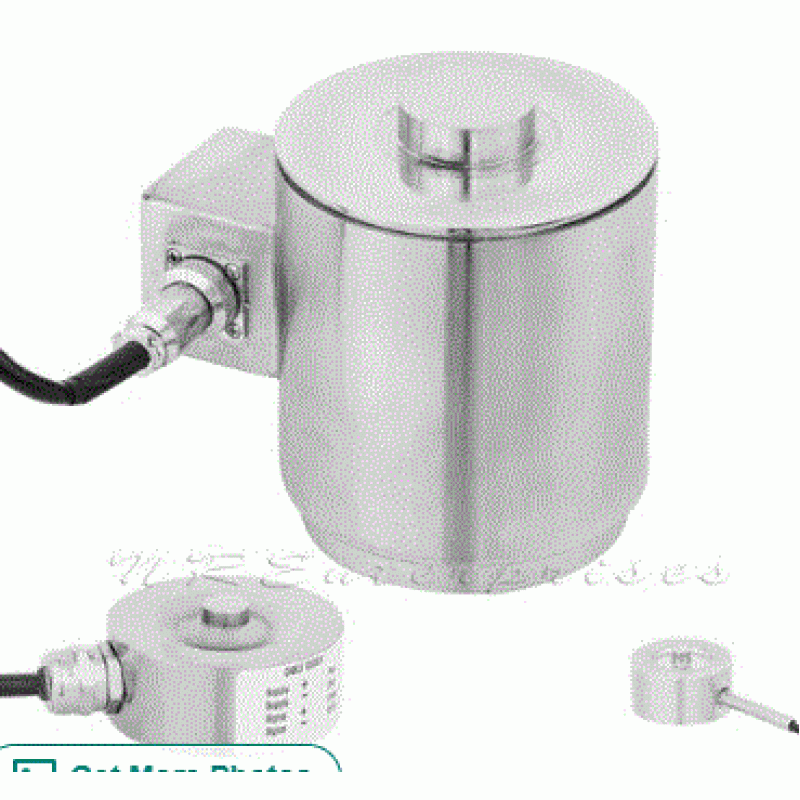

Compression Load Cell
Product Details:

Capacity	50 Ton
Ingress Protection	IP68
Application	Truck Scales
Features	Hermetically Sealed
Creep Error (30 minutes)	+/- 0.03% FS
Temperature Effect on Zero	+/-0.020% FS/DegC
Temperature Effect on Output	+/-0.01% FS/DegC
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Ultimate Safe Overload	200% FS
Recommended Excitation Voltage	5 to 15V DC
Maximum Excitation Voltage	15V DC
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperature Range	-20 to +70 Deg C
Cable Length	2-20 m
