Compression Testing Equipment
Product Details :
| Horizontal Clearance | 260mm |
| Cube Size | 100 mm, 150 mm |
| Brick Size | 100 x 100 x 225mm |
| Cylindrical Size | 100mm x 200mm, 150mm x 300mm |

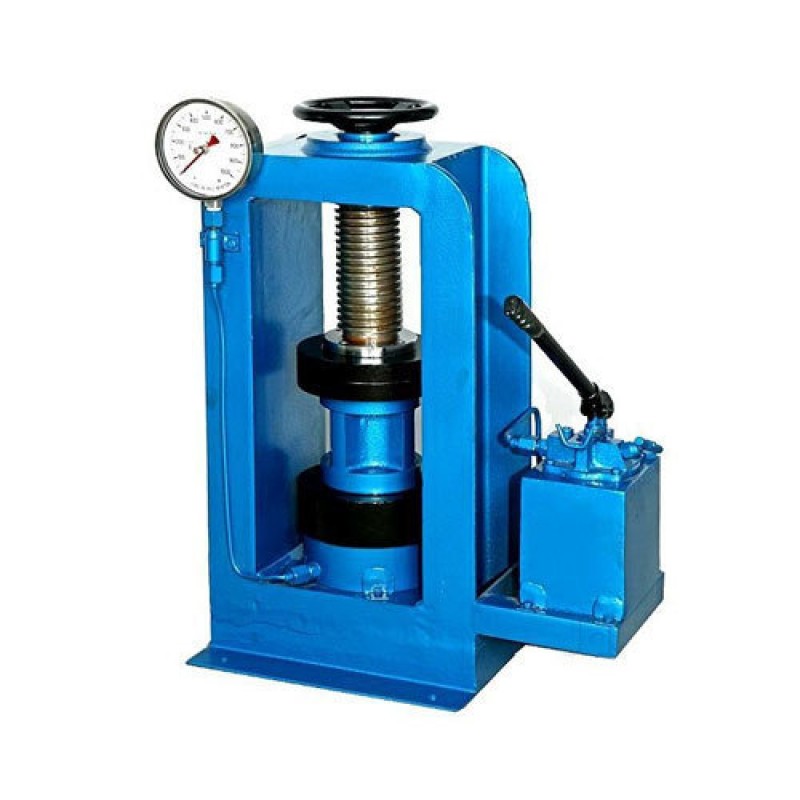

Testing Equipment Manually (Hand) Operated fitted with single load gauge. The loads are measured on Bourdon tube type load gauges which are calibrated against certified proving rings. The load gauges are fitted with a maximum load pointer.
Specifications:
| Model | AT-108 (a) | AT-108 |
| Capacity (In kN) | 1000kN | 1000kN |
| Pressure Gauge (In kN) | 1000kN | 1000kN |
| Least Count (In kN) | 5kN | 5kN |
| Pressure Gauge Diameter (mm) | 150 | 200 |
| Vertical Daylight (mm) | 310 (Adj) | 310 |
| Horizontal Clearance (mm) | 260 | 240 |
| Platen Size (mm) | 240 x 165 | 220 |
| Ram Diameter (mm) | 165 | 165 |
| Ram Travel (mm) | 50 | 50 |
| Type of Loading Unit | Channel Model | Four Pillar (Portable) Model |
Compression Testing Equipment
- Views: 113
-
National Instruments Corporation - Product Code: AT-108
- Availability: In Stock
