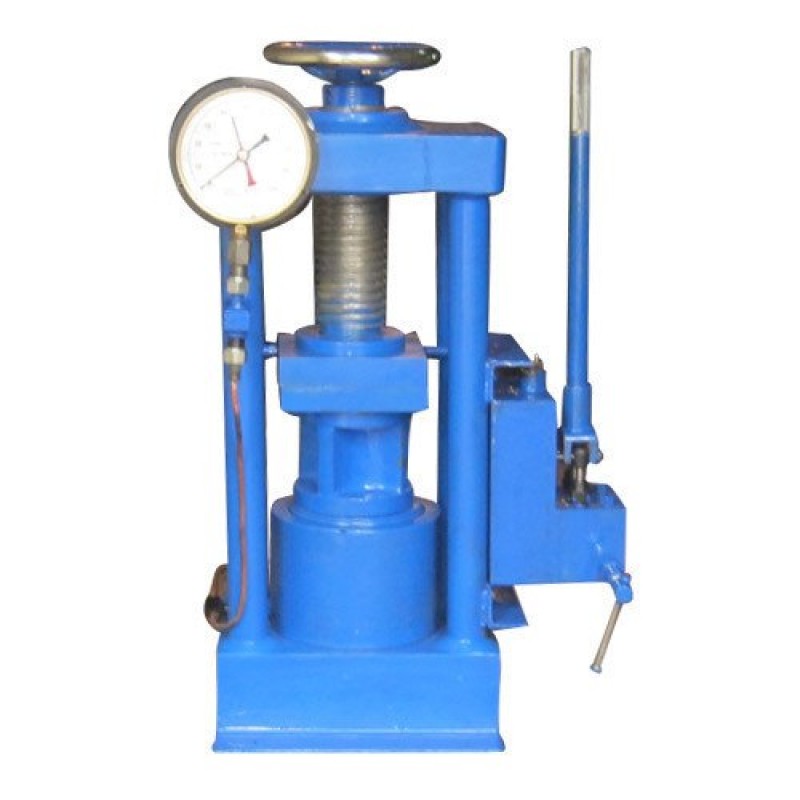

Compression Testing Machine Hand Operated

Product Details :

Product Description (2 Pillar Model): Compression Testing Equipment Manually (Hand) Operated fitted with single load gauge. The loads are measured on Bourdon tube type load gauges which are calibrated against certified proving rings. The load gauges are fitted with a maximum load pointer.

Specifications:

• Capacity (In kN): 1000 kN
• Pressure Gauge (In kN): 1000 kN
• Least Count (In kN): 5 kN
• Pressure Gauge Diameter (mm): 150
• Vertical Daylight (mm): 320 (Adj)
• Horizontal Clearance (mm): 260
• Platen Size (mm): 220 x 165
• Ram Diameter (mm): 165
• Ram Travel (mm): 50
• Cube: 100mm, 150 mm
• Cylindrical: 100 mm x 200 mm, 150 mm x 300 mm
• Brick: 100 x 100 x 220 mm

Additional Information:

• Delivery Time: Ready stock
• Packaging Details: wooden crate
