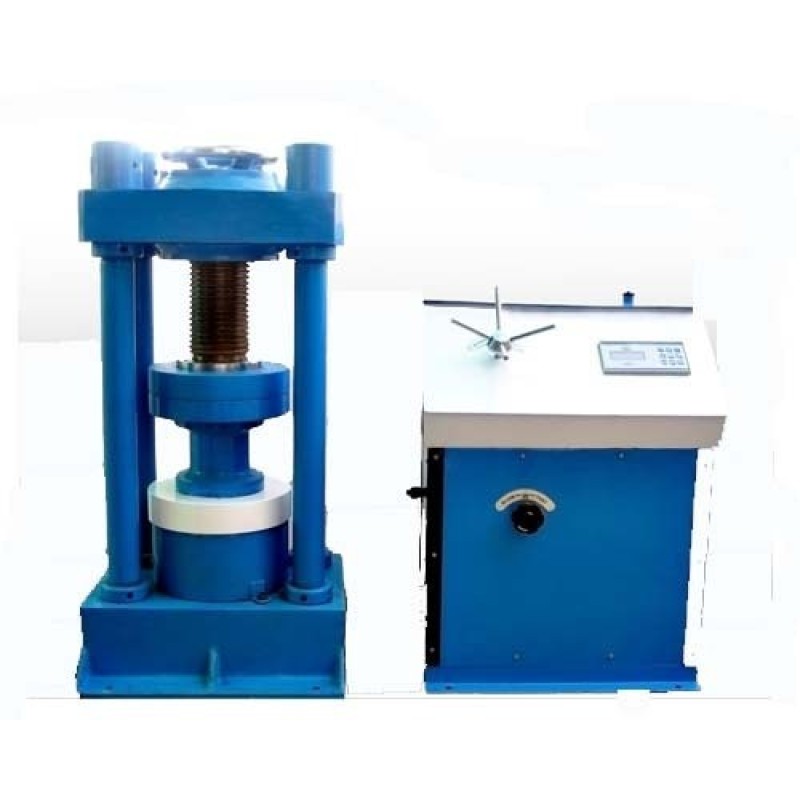

Digital Compression Testing Machine 2000 Kn
Product Details:
Minimum Order Quantity | 1 Unit |
Material | Mild Steel |
Phase | Single Phase |
Brand | Rajco |
Load Capcity | 2000 kN |
Voltage | 220 V |
Load Retaining Time | 15 Minutes |
The Digital Compression Testing
Machine has been designed to |
meet the need for a simple,
economical and reliable means to |
test concrete for its compressive
strength. The design |
emphasizes simplicity, both
construction, and operation, and |
makes the machine easy to use and
maintain. The unit is compact, |
making it useful for site
applications. The digital machines are |
provided with a pace rate
controller, to enable maintain a |
constant rate of loading. |
The complete unit comprises : |
Loading Unit is of fully welded
construction having a cross-head |
with a specially seated platen.
The lower platen is attached to |
the top of the piston. The Loading
Units of capacities 2000 KN test |
cubes up to 200mm and cylinders up
to 300 mm height can be |
Pumping Unit, The pumping
facilitates the rapid approach of the |
tested platens for daylight
closure & also provides comprehensive |
control valve provides fine
control over the loading rate for |
the accuracy of pacing. The
digital read-out unit, incorporates a 4 |
digit display, calibrated in KN
and features integral load pacing i |
n KN/Sec. Maximum load is held and
retained for approx 15 min, |
unless cancelled , using the panel
mounted reset switch. Pace |
rate set for running the test can
be maintained manually with |
the help of a bar graph indicator. |
