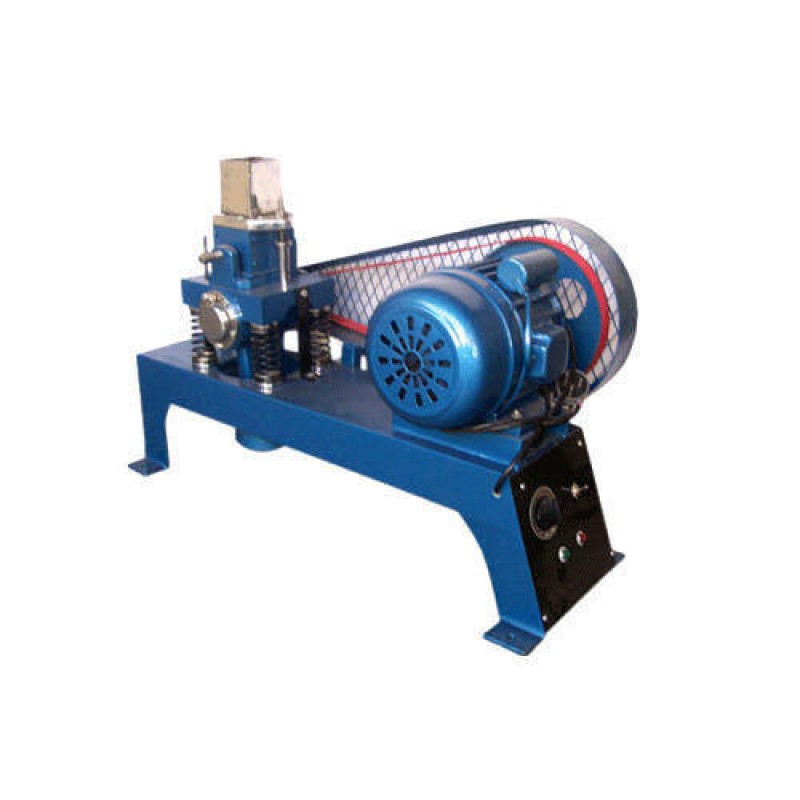

Mortar Cube Vibrating Machine
Product Details :
| Phase | Single Phase |
| Weight | 110 kg |
| Frequency | 50Hz |
| Capacity | 12000 cycles per minute |
Mortar Cube Vibrating Machine is used for vibrating the mix in molds at a frequency of 12,000 ± 400 cycles per minute. The vibrator is mounted over 4 coiled springs and the vibrations are developed by means of a revolving eccentric shaft. The center of gravity of the vibrator, including the cube mold, is either at the center of eccentric shaft or within 25mm below it. The simple design of the machine facilitates easy assembly and dismantling of the cube molds.
Specifications:
| Cat No. & Name | Type of Timer | Motor | Elec. Supply |
| AT-164-1: Vibrating Machine | Analogue | ½ HP 2880RPM | 220V, Single Phase, 50Hz AC Supply |
| AT-164-2: Vibrating Machine | Digital | ½ HP 2880RPM | 220V, Single Phase, 50Hz AC Supply |
Mortar Cube Vibrating Machine
- Views: 49
-
National Instruments Corporation - Product Code: AT-164-1
- Availability: In Stock
- ₹0
