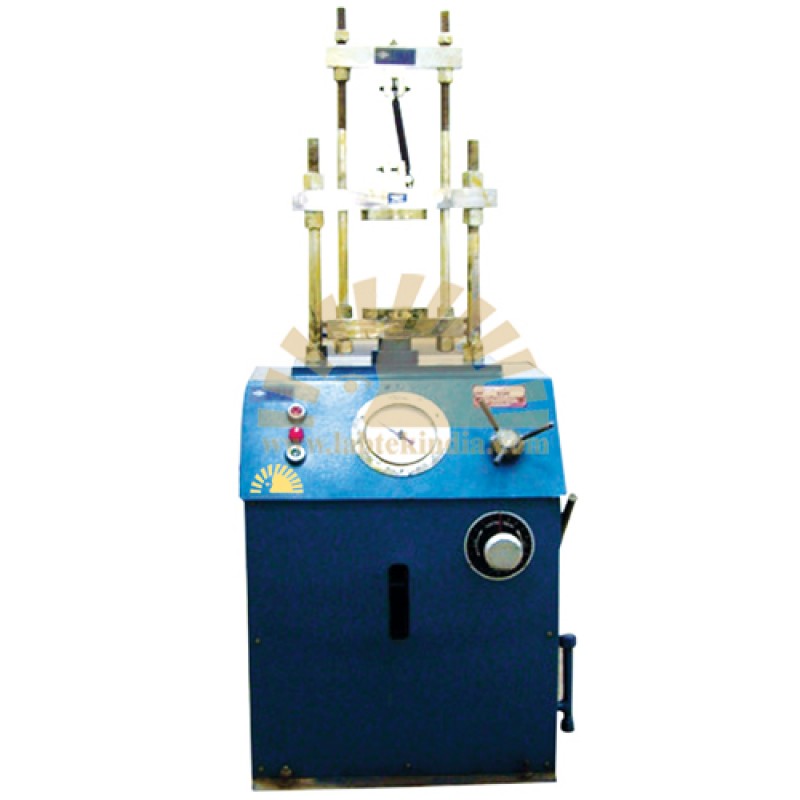

SPRING TESTING MACHINE

Product Details :

TECHNICAL SPECIFICATION

•  Maximum Capacity 500 kg / 5000N
•  Type of Spring Tension and Compression
•  Free length of tension spring 300mm
•  Diameter of compression spring 200mm
•  Load Application By top hand wheel
•  Maximum Cross Head Travel-without sample/grip 500mm
•  Force Measuring Resolution 0.1kg(100gms) / 1N
•  Pitch 5mm
• One complete revolution of Handle (360 degree) Travel of Crosshead up or down
•  Type of Construction Double Column

•  Elongation / Deflection / Least Count 1 ft scale(300mm)

GRIP:

•  Compression Plate 200mm (1set - 2Nos.)
•  Tension Grip / Hook Optional
•  Load cell and digital Indicator - 750kg Load cell, Microprocessor based indicator suitably calibrated.
