Air Entrainment Meter

Product Details :

We are engaged in offering a huge array of Air Entrainment Meter to our customers. We offer these at market leading rates.

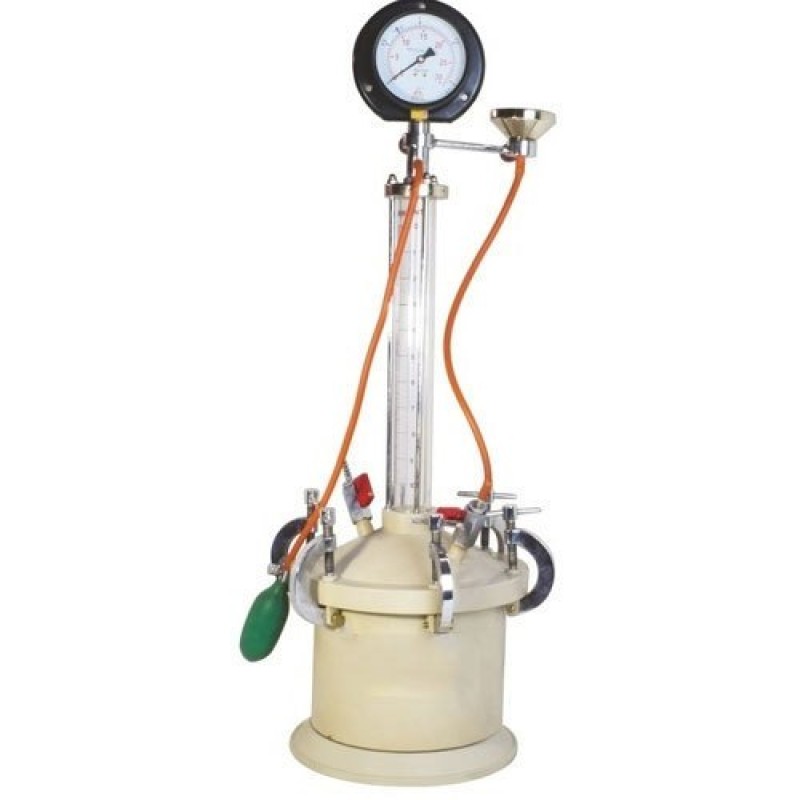

It consists of a pressure tight flanged cylindrical measuring bowl, fitted with a removable flanged and a conical cover assembly with a seal in between. The conical cover has an air valve and a pet cock for bleeding off the water. A cylindrical stand pipe, which id graduated in percent air content, is fixed on the conical cover assembly. Required pressure is applied to the specimen with the help of a pressure bulb. The whole assembly is mounted in a flat base. Supplied complete with calibration cylinder, pressure gauge, funnel, trowel and tamping bar and a rubber hammer.

Available in following different models :

Air Entrainment Meter, Capacity 0.005 m3 (5litres),  suitable for aggregate size upto 38 mm .
Air Entrainment Meter, Capacity 0.01 m3 (10 litres),  suitable for aggregate size upto 75 mm
Air Entrainment Meter, Capacity 0.1 m (100 litres),  suitable for aggregate size upto 150mm.
