Air Entrainment Meter

Air Entrainment Meter

Model No.: SMEW-0084

Standards: IS 1199 1959 & BS 1881-106

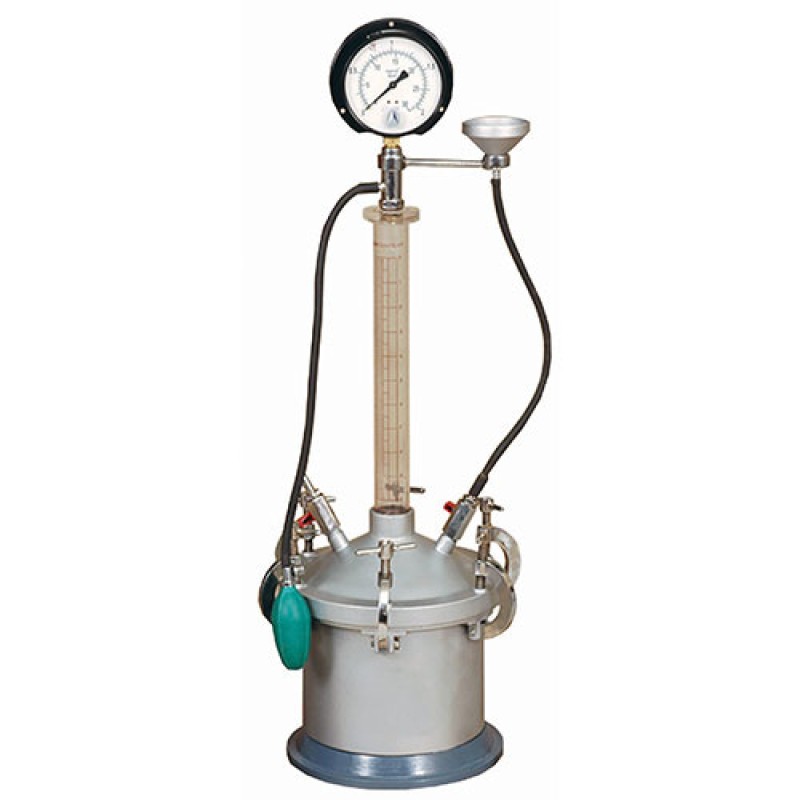

Specification : The apparatus consists of a pressure tight flanged cylindrical measuring bowl. The bowl is fitted with a removable flanged conical cover assembly with the help of a seal. The conical cover has an air valve and a petcock for bleeding off the water. A transparent cylindrical stand pipe which is graduated in air content is fixed to the conical cover assembly. Pressure is applied to the specimen with the help of a pressure bulb and the pressure is recorded on the pressure gauge which is mounted on the stand pipe. The whole assembly is mounted on a flat base. The instrument is supplied complete with one each following accessories.


Calibration cylinder with spring clamp, trowel, tamping rod, straight edge. Rubber mallet and measure.


Capacity Are also Available


Bowl Capacity: 0.005 cubic meter

Bowl Capacity: 0.007 cubic meter

Bowl Capacity: 0.01 cubic meter

Bowl Capacity: 0.01 cubic meter
