Introduction

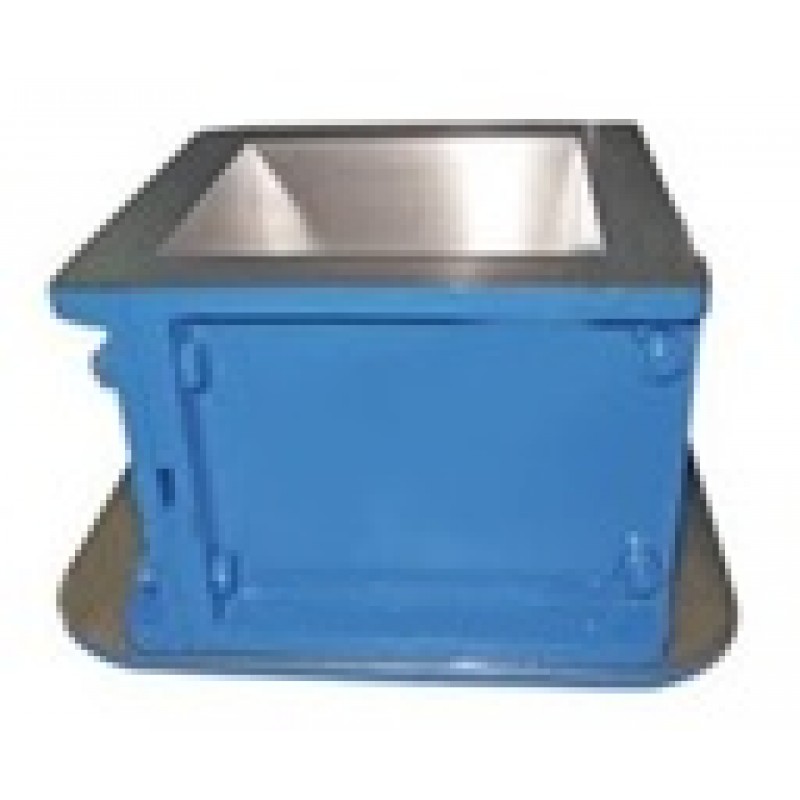

Cubes of fresh concrete are made to test a variety of properties on the eventually cured and hardened concrete. Fresh concrete is subjected to a standard compaction regime in the cube mould and is then normally initially cured under specific laboratory conditions. The moulds are manufactured, subject to tight dimensional, hardness, squareness and surface finish requirements.

General Description & Specifications

Complete with a base plate. The faces of the mould are machined flat to +/- 0.02mm accuracy and finished to within +/- 0.2mm of specified dimensions. Material for construction of moulds is Cast Iron or Mild steel. The moulds are stout enough to prevent distortion and facilitate the removal of the moulded specimen without damage. The Moulds are so machined that when they are assembled ready for use, the dimensions and internal faces are accurate within the specified limits. Internal faces of the moulds are smooth.

The base plate is attached to the mould by cleats.The parts of the mould, when assembled, are positively and rigidly held together during filling, subsequent handling, and vibration where applicable.

SIZES AVAILABLE : 50MM/ 100MM/ 150MM

OPTIONAL ACCESSORIES

SPANNER FOR DEMOULDING AND MOULDING,

TAMPING ROD WITH SQUARE FACE.

CUBE MOULD 7.06 CMS(FOR CEMENT MORTAR)

As per IS : 10086-1982, The cube mould is so constructed so as to facilitate separation into two parts. The mass of the mould together with the base plate will be 2.8 +/- 0.2 kg. Material for construction of these moulds is mild steel.

BEAM MOULDS

For casting concrete specimens for flexural tests. The mould is made of 4 plates assembled together. Each mould with the base plate, made of Mild Steel. Faced are machined flat to +/-0.2mm and finished in size to 0.2mm. AS PER IS: 516
