Cube Vibrating Machines
Product Details:

Usage/Application	Industrial
Power	>6 kw
Material	Stainless Steel
Automation Grade	Automatic
Phase	Three Phase
Brand	Steco
Voltage	440 V
Vibrating Range	2 To 5 mm

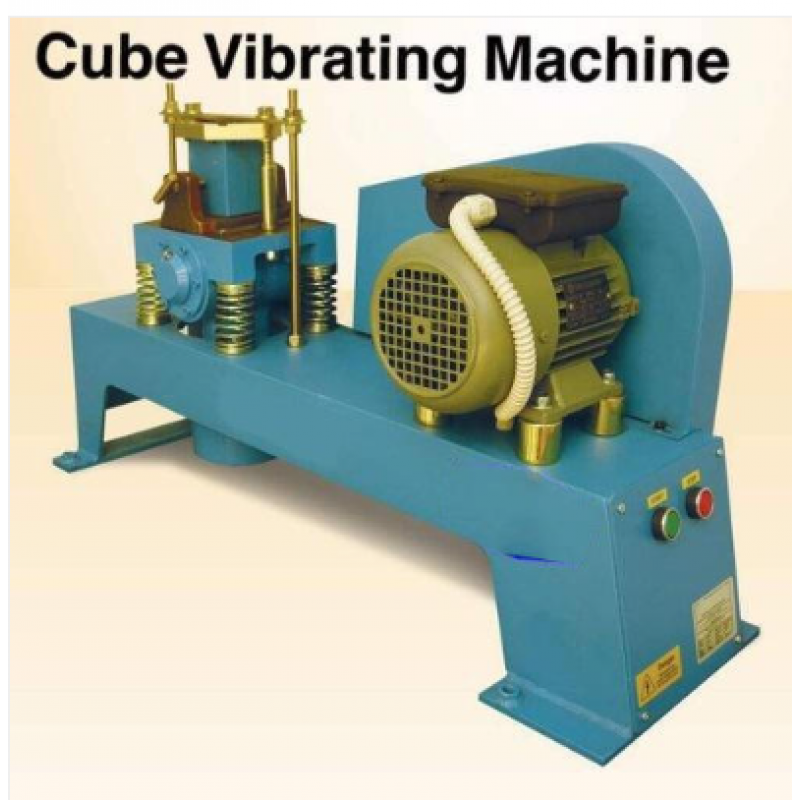

Cube Vibrating Machine is used for vibrating the mix in moulds at a frequency of 12,000 ± 400 cycles per minute. The vibrator is mounted over 4 coiled springs and the vibrations are developed by means of a revolving eccentric shaft. The centre of gravity of the vibrator, including the cube mould, is either at the centre of eccentric shaft or within 25 mm below it. The simple design of the machine facilitates easy assembly and dismantling of the cube moulds.
