Curing Tank

Curing Tank

Model No.: SMEW-0060

Standards :


Specification :

Features :

  • 24 Hour cycle from time of mixing.
  • Controlled 35° C or 100° C ± 2° C Curing Temperature for concrete.
  • Controlled 27° C ± 2° C Curing Temperature for grey cement.

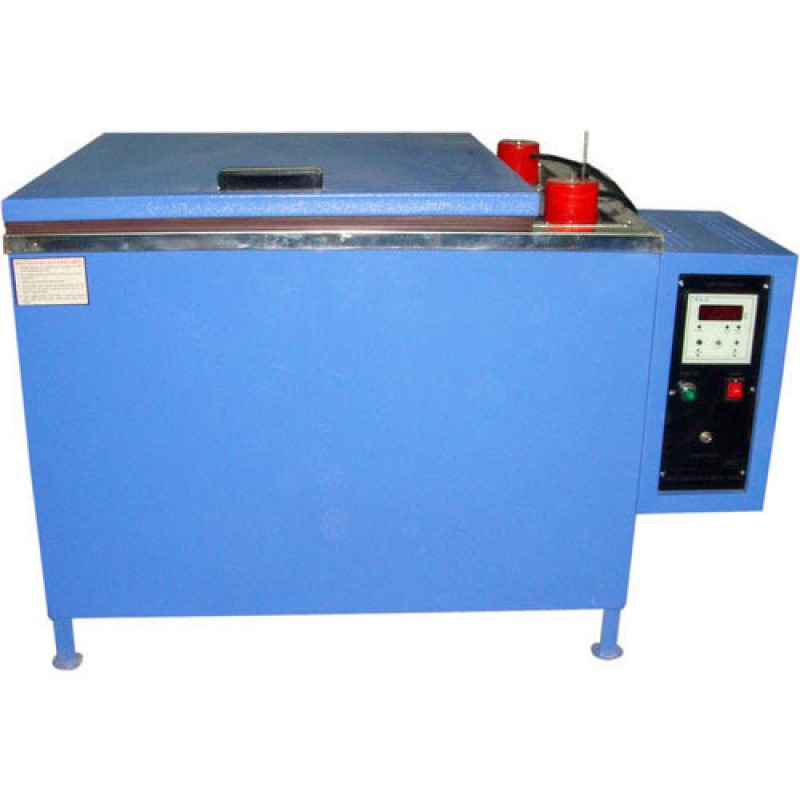

The tank has been designed to accommodate 150mm / 70.6mm cube moulds upto 36/72 cube mould and fully insulated, complete with a hinged lid, heater, thermostat and re-circulated pump. Provision of two removable racks allowing free circulation of water around each mould. The pump, drain valves and electrical equipment are housed in a compartment located at one end of the tank. The Tank is heated by an immersion heater under normal conditions and refrigeration system for grey cement the temperature is controlled at 35° C or 100° C ± 2° C / 27° C +2° C, expect for the 15 minutes after immersion of the freshly made specimens


Note : Accelerated curing tank with cooling arrangement is also available of request.

  • Curing Tank for 6/12 moulds of 150 mm / 70.6 mm size
  • Curing Tank for 12/24 moulds of 150 mm / 70.6 mm size
  • Curing Tank for 24/48 moulds of 150 mm / 70.6 mm size
  • Curing Tank for 36/72 moulds of 150 mm / 70.6 mm size
