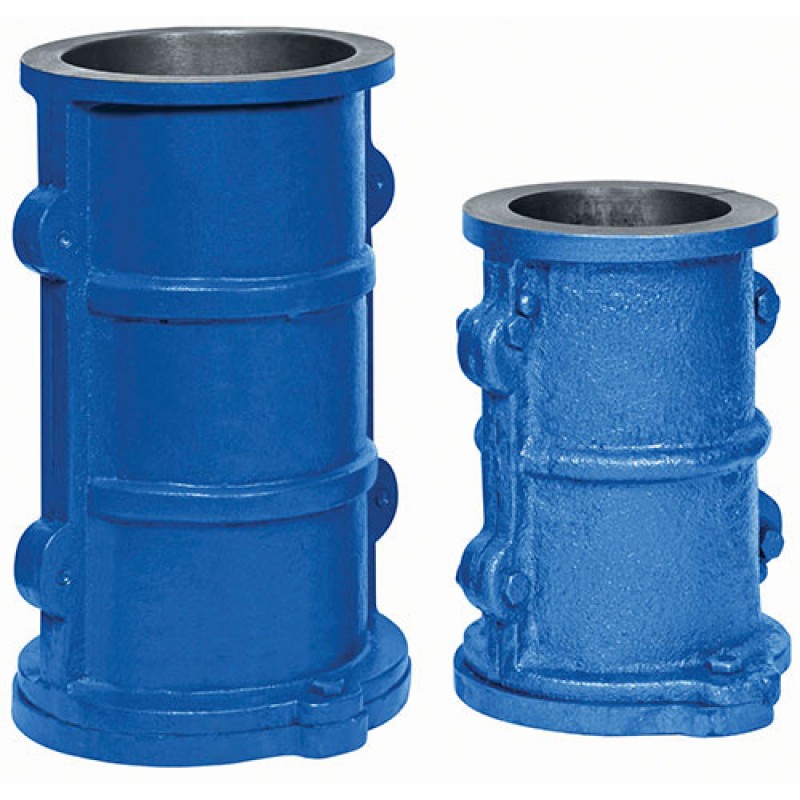

Cylindrical Mould

Model No.: SMEW-0102

Product Description: We are specialized in the Manufacturing and Supplying of Cylindrical Mould. The Cylindrical Mould is used for testing concrete cylinders for compressive strength tests. The Cylindrical Mould can be availed at market leading prices from us.

Product Specifications -

• The mould is made as split type with two equal segments that can be combined accurately
• Base plate and top plate are offered together with cylinder. Fasteners are also provided
• Base plate and top plate are machined flat to +/- 0.03 mm
• Mean diameter (internal) of the moulds is within the accuracy range of +/- 0.2 mm
• Height of the metal cylindrical mould is within accuracy range of +/- 1 mm
• Mould cylinder, cast iron, 150mm dia. x 150mm height.
• Mould cylinder, cast iron, 150mm dia. x 300mm height.
• Mould cylinder, cast iron, 160mm dia. x 320mm height.
• Mould cylinder, cast iron, 100mm dia. x 200mm height.
• Mould cylinder, cast iron, 300mm dia. x 600mm height.
