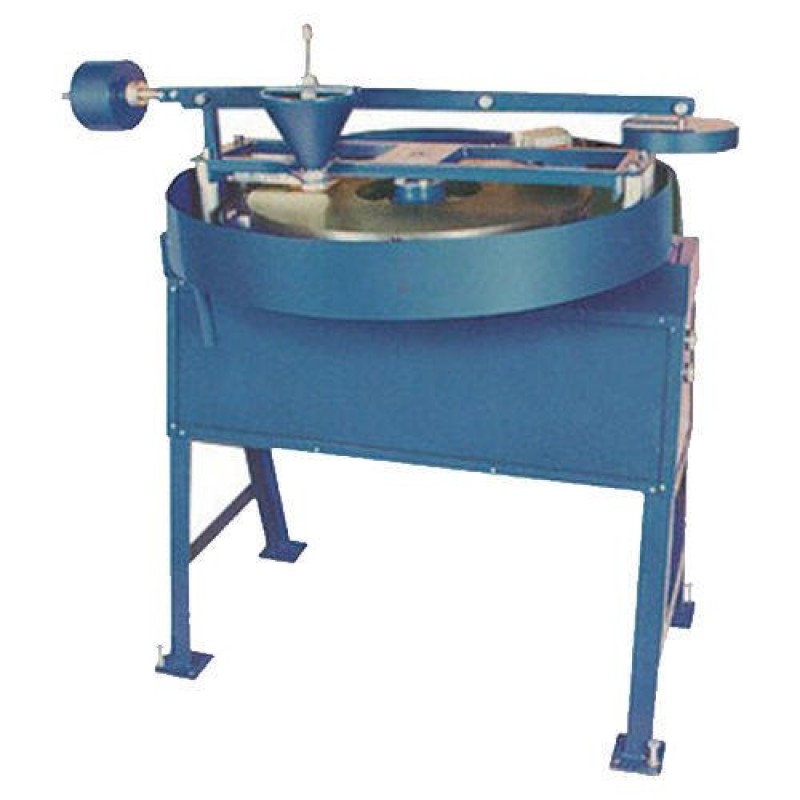

Dorry Abrasion Testing Machine

Product Details :

AS PER BS: 812 The machine is used to determine the resistance of aggregate to wear by abrasion. Inadequate abrasion resistance of road-surfacing aggregates means an early loss of the texture depth required to maintain high-speed skidding resistance.

We are one of the leading firms, supplying and exporting qualitative Dorry Abrasion Testing Machine. All the machines are widely demanded by ceramic tile making industry for different tests and checks and other applications. These machines are available in various models and sizes as well as can be customized as per the demands and needs of customers.

Specification:

It consists of a disc rotating about a shaft connected to a reduction gear box coupled to a motor. The disc rotates at 28-30 r.p.m. Under the rotating disc is a tray with an outlet to facilitate the removal of sand. Two conical hoppers are mounted on a bracket fixed to the circular tray. An arrangement is made for start and stop the flow of sand. Two holes are provided for mounting two specimens simultaneously.
