Extensometer
Product Details :

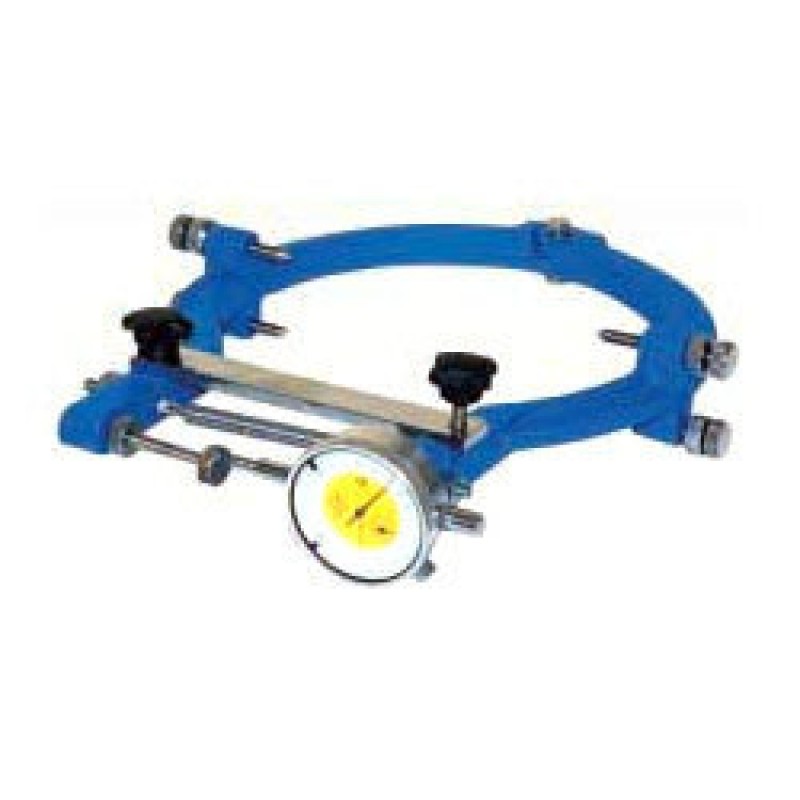

We provide our valued clients Extensometer that consists of two movable frames both pivoted at one end. The lateral Extensometer is appropriately fixed to the specimen with the help of tightening screws. The lateral Extension is appropriately indicated on a dial gauge of about 0.002 mm x 12 mm travel. The extension is magnified with 2.5 times and the dial gauge readings can be divided by 2.5 to get the accurate readings. A spacer strip is also provided to set the dial gauge initially and can be easily removed after initial setting is made. These are provided in a wooden carrying case.
