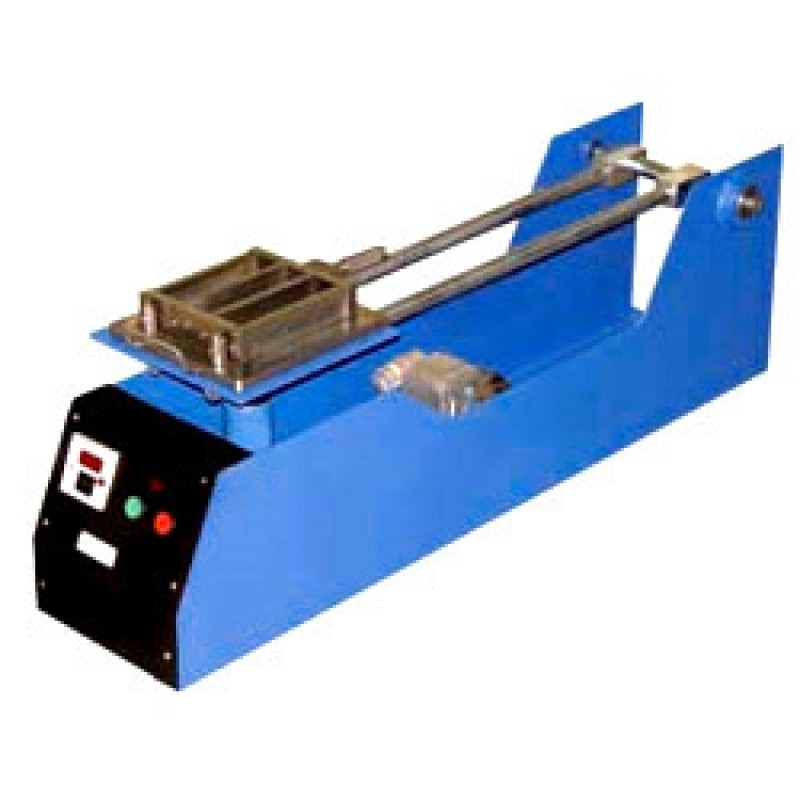

Jolting Machine

Product Details :

We hold high expertise in offering Jolting Machines that are supplied with mould and hopper operation on 230 Volts 50 Hz AC. It comprises of a rectangular table that is rigidly connected by two sturdy support arms to a spindle at a horizontal distance of about 800 mm from the center of the table. The table can be easily raised and allowed to fall freely with the help of a cam that is connected to a motor. Further, the cam rotates at a rate of about a 60 rev/min. A stroke counter appropriately fitted with micro-switch, which stops the machine after every 60 jolts. Locating pins are provided for effectively mounting the mold compartments on the table. The mold that is surrounded by the hopper can be conveniently clamped rigidly to the table.
