Longitudinal Compressometer
Product Details:
Description:
Brand | Steco |
Material | Steel |
Temperature Range | -10 To + 40 Degree C |
Automation Type | Semi-Automatic |
Gauge | 0.002 mm x 5 mm |
Test material | Harden Mix Concrete |

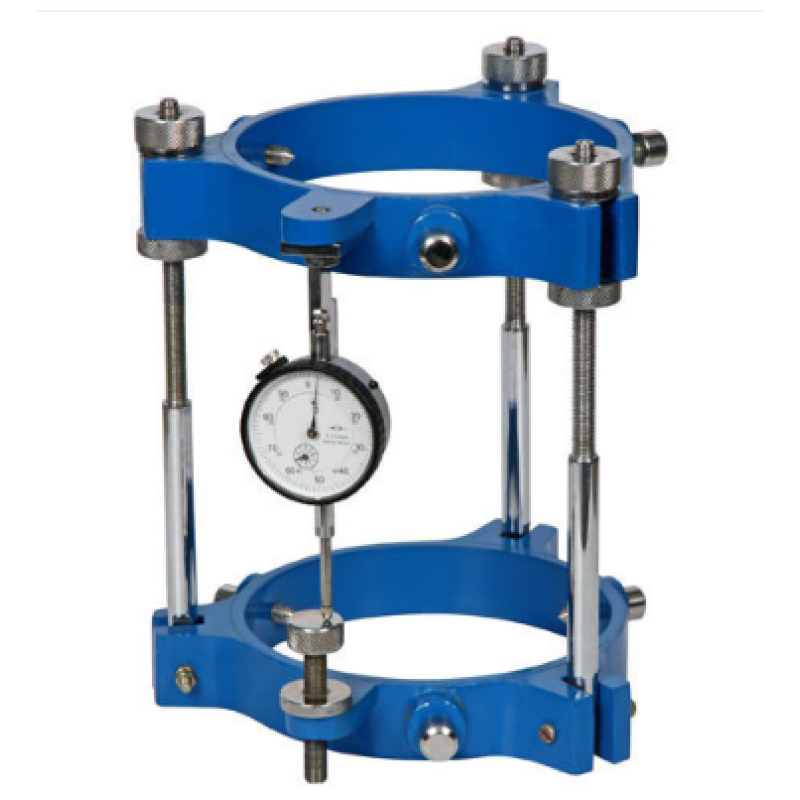

It Consists of two frames for clamping to by means of five tightening screw with a hardened end tampered end. Two spacer hold the two frames in position. A pivot rod rests on pivot screws. A dial gauge, fixed to a bracket fitted to the top frame is used for taking deformation measurement. Supplied complete with dial gauge 0.002mm x 5mm in a nice wooden carrying case.
Longitudinal Compressometer
