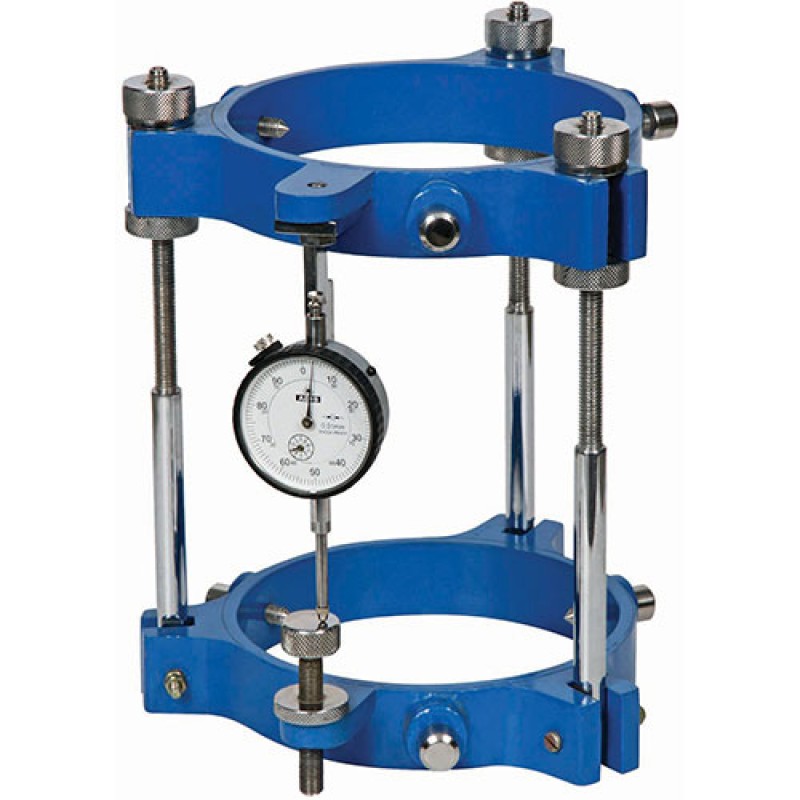

Longitudinal Extensometer

Model No.: SMEW-0097

Standards: ASTM C 469

Specification : Consists of a frame with a bottom ring and a top ring with tightening screws to firmly clamp the compressometer over the cylinder. A dial gauge .002 mm x 5 mm is mounted on the upper ring and the tie of the dial gauge rests on an anvil. The zero on the dial gauge can be set by adjusting the anvil screw. Supplied in a wooden carrying case. Send Enquiry Download Catalog
