Los Angles Abrasion Testing Machine

Los Angles Abrasion Testing Machine

Used for testing crushed rock, crushed slag, crushed and uncrushed gravel for resistance to abrasion.

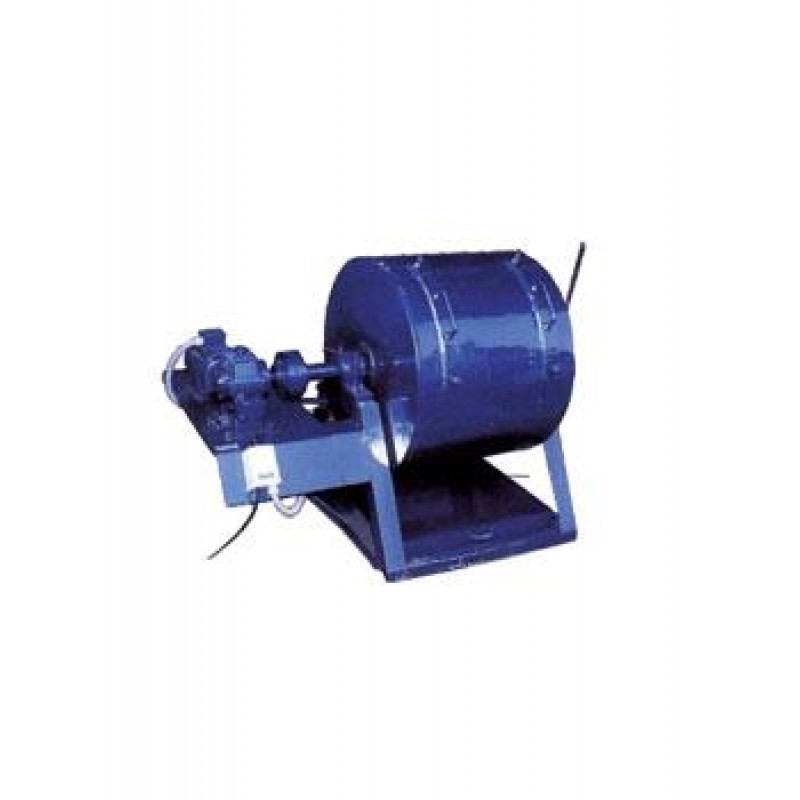

Components: The machine consists of a hollow cylinder mounted horizontally on a study frame on ball bearings. There is an opening which can be closed with a dust tight cover to facilitate charging and discharging the drum with the material under test. A detachable shelf which extends throughout the inside length of the drum which catches the abrasive charge and does not allow it to fall on the cover. A revolution counter is fitted to the frame. A tray is supplied for collection of the material at the end of the test.

As Per IS: 2386 (Part IV) ASTM: C 131, AASHP T 96

Additional Information:

• Item Code: ASI-315
