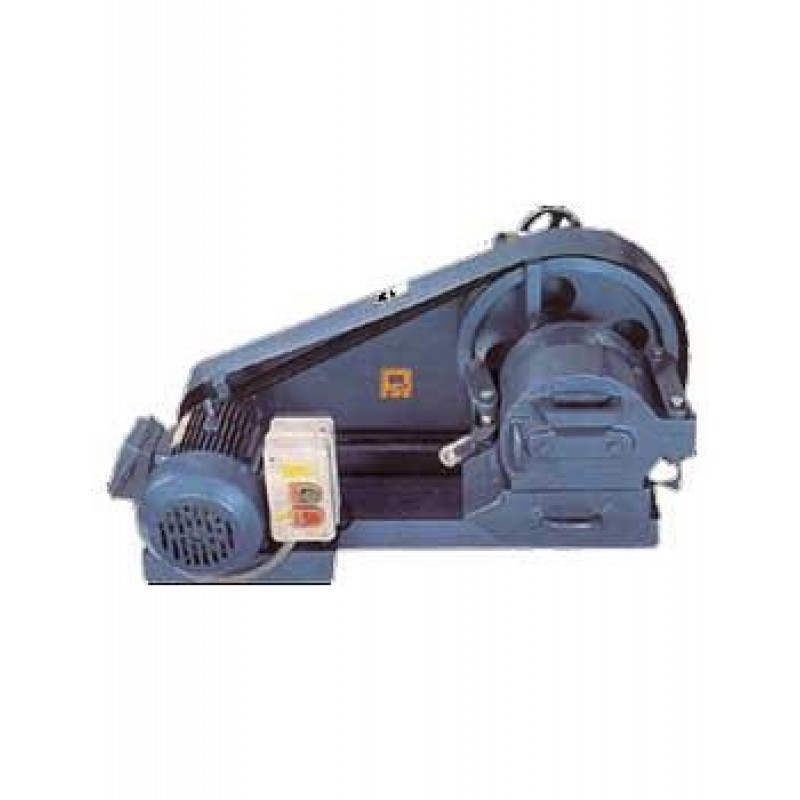

Pulveriser
Voltage | 440 V |
Motor Power | 3 H.P |
Frequency | 50 Hz |
Disc Diameter | 175 mm |
Maximum Feed size | 6 mm |
Yield | 250 gms./min |
Size of Finished Product | 100 mesh |
The Laboratory Pulverize is a disc type grinder, designed to grind virtually any material to produce a fine mesh sample in one operation. The instrument is useful for assaying , mining and for metallurgical, quarrying, aggregate processing, chemical, geological and industrial Laboratories. It is a self contained grinder, with a rotary disc, having a planetary movement in a vertical plane. This feature gives added life to the moving parts and produces a sample of uniform fineness.
Grinding is done between two discs-one stationery and the other revolving eccentrically at high speed. The discs are made from heat treated machinate metal. With the help of a convenient hand wheel, the size of the final product can be adjusted. This can be done, even while the machine is in operation. A self locking device holds the hinged grinding chamber in place and affords easy and quick access to it, for removal of ground samples and for cleaning.
Additional Information:
- Item Code: ASI-235
