Rajco Brazilian Test Apparatus
Product Details:
Minimum Order Quantity | 1 Unit |
Grade | Manual |
Display Type | Analog |
Diameter | 75 mm |
Thickness | 25 mm |
Pressure Gauge | 0.5 tonnes x 25 kg |
Driven Type | Hydraulic |

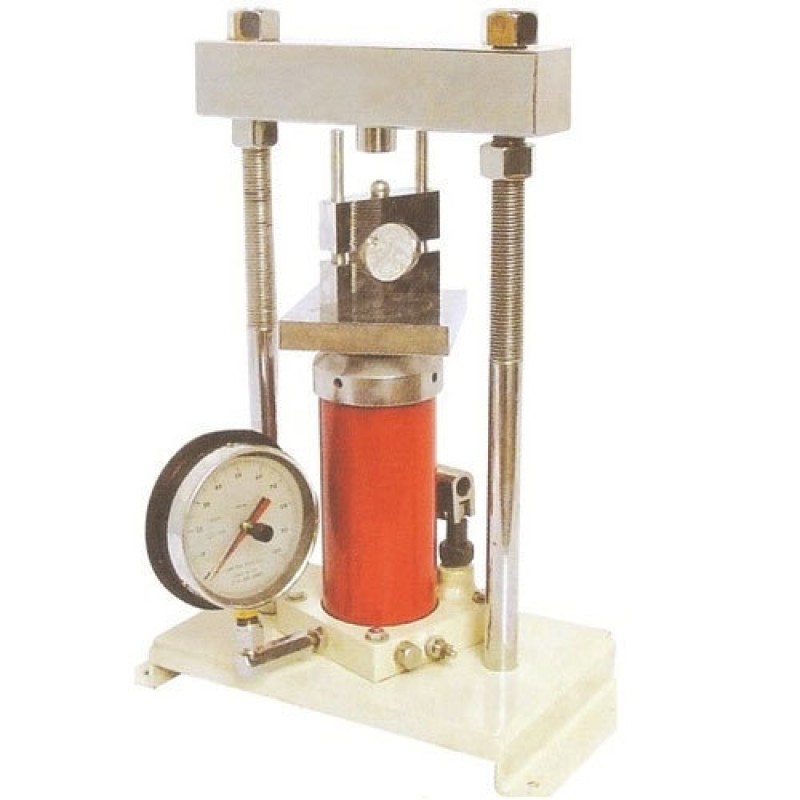

It is for conducting Brazilian Test on 75 mm Dia x 25 mm thick the samples and can be used motor tube also. Comprises of a hand operated hydraulic Jack provided with self-retracting piston fixed on the base of a load frame. Loads are recorded on a pressure gauge 0.5 tonnes x 25 kg. And maximum pointer is provided for the breaking of the load indication. Semi-Cylindrical loading strips are provided for Brazilian test and two hardened and ground platens are provided for a compression test.
