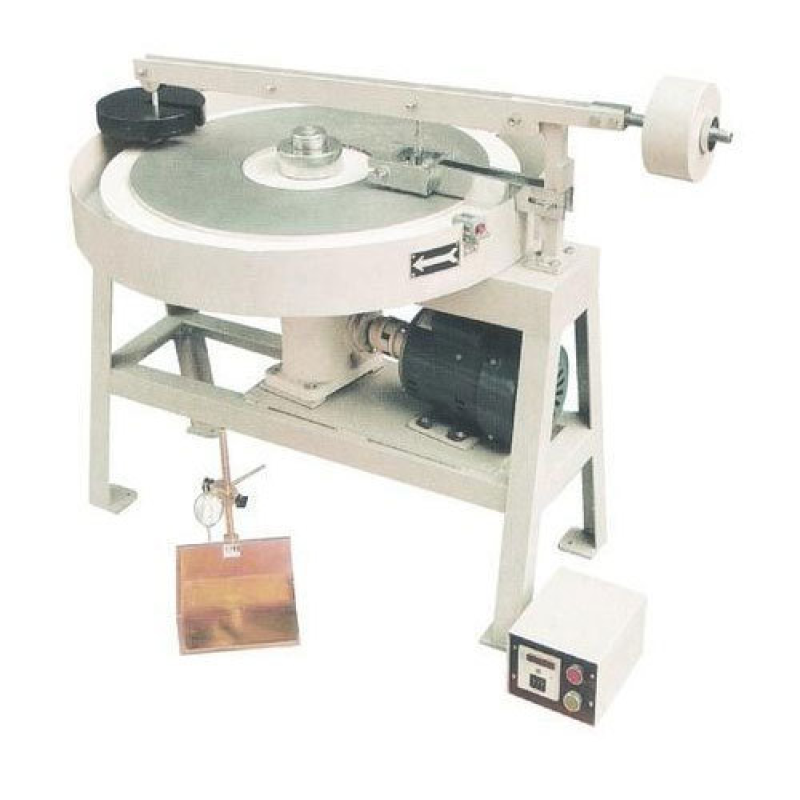

Rajco Tile Abrasion Testing Machine : IS : 1237, 1706 Cement Flooring Tiles with Digital Counter

Product Details:

Minimum Order Quantity	1 Unit
Material	Steel
Usage	Industrial
Voltage	220 V
Phase	Three phase
Surface Finish	Galvanised
Power source	Electricity
Revolving Speed	22 Revolving Per Minute
Dial Gauge	0.01 mm x 25mm



The tile sample is pressed under a specified
load against a grinding path strewn evenly with an abrasive
powder revolving at the rate of 22 revolutions per min. At
the end of 100 revolutions of the disc the second parallel
the side of the tile is subjected to wear for an equal number of
revolutions of the disc.
The wear of the tile is measured using a thickness gauge.
The abrasion testing machine consists of a replaceable
grinding path fitting on to a disc rotating its vertical axis. The
rotating disc and grinding path are enclosed by a circular tray.
A bracket holds the specimen. The loading is by a Digital counter
balanced lever. A funnel is provided to facilitate charging
the grinding path with abrasive powder. Supplied complete with
automatic pre-set revolution Digital counter and one 7.5 kg
weight but without abrasive powder.
Suitable for operation on 230 Volts, Single phase, A.C. Supply.
Thickness measuring device with dial gauge 0.01 mm x 25mm
travel.
