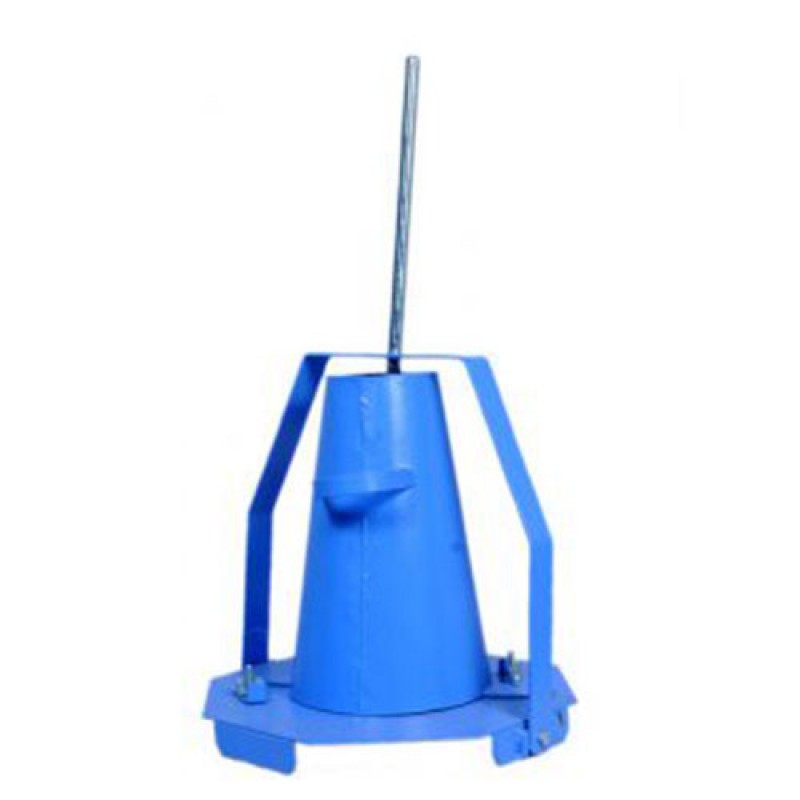

Slump Test Apparatus

Model No.: SMEW-0073

Standards: IS 7320 & BS 1881-102

Specification: The Concrete slump test is an on-the-spot test to determine the consistency as well as workability of fresh concrete. This test plays a vital role in ensuring immediate concrete quality in a construction project. It is used almost in every construction sites.

The slump test is very simple and easy to handle. It also demands comparatively less equipment and can be done in a short period of time. These advantages of slump test have made it very popular all over the world. In the slump test, workability of concreteis not measured directly. Instead, consistency of concrete is measured which gives a general idea about the workability condition of concrete mix.

Slump Test Apparatus Product specifications

Here are the objective specifications of our slump test apparatus –

• The apparatus can be used for concrete mixes with maximum aggregate size of 38 mm.
• There is a slump cone made of steel. Its lower base diameter is 200 mm while at the top, it has diameter of 100 mm. Height is 300 mm.
• Foot pieces can be fixed to the clamps provided at the base plate. A lifting handle is also attached with the base plate for easy handling
• A 600 mm long and 16 mm wide graduated steel rod is provided as part of the apparatus.
• Slump test apparatus of SMEW-test India is developed as per standards IS 7320 and BS 1881 – 102. Our apparatus is of very simple make yet it has been developed through the use of best quality materials including high tensile steel that is rust proof. Thus the apparatus delivers without any deformity or lack of accuracy for years.

Our apparatus is of very simple make yet it has been developed through the use of best quality materials including high tensile steel that is rust proof. Thus the apparatus delivers without any deformity or lack of accuracy for years.
