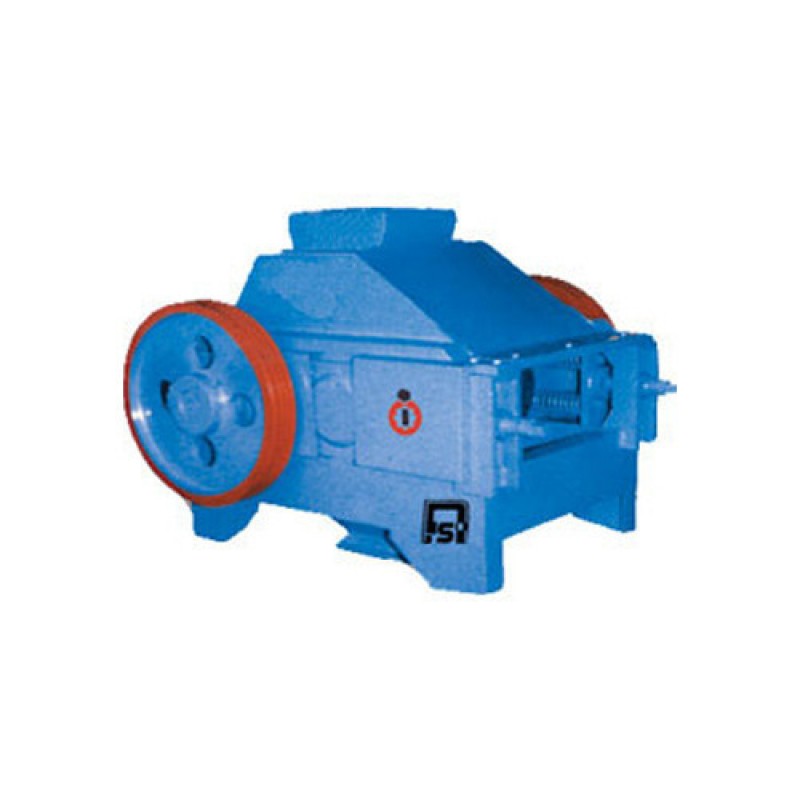

Small Roll Crusher
Product Details:
Material | Steel |
Rollers | 100 mm and 250 mm dia |
Motor Power | 3.0 H.P |
Voltage | 440 V 50 Hz |
Feed Size | 10 mm |
Product Size | 2.00 mm and below |
Small Roll Crusher comprises of two hardened alloy steel rollers. The rollers are fitted to a steel shaft and are mounted on heavy duty gunmetal bearings. The outside bearings are provided with heavy duty compression springs. Which help in increasing the space between the rolls, when a piece of material cannot be crushed. Square threaded bolts are provided to adjust the gap between the rolls. The drive is by a heavy motor, through 'V' belts, to a set of gears and further to the rollers. A hopper is provided for feeding the material. The whole arrangement is mounted on a fabricated steel material.
Additional Information:
- Item Code: ASI-236
