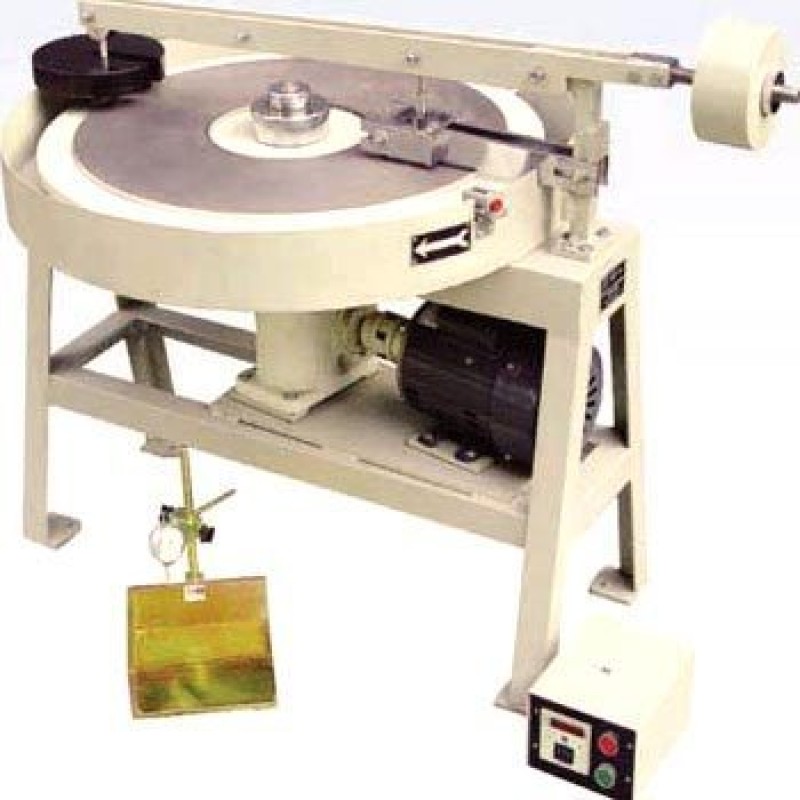

Tile Abrasion Tester

Product Details :

We are one of the reckoned organizations engaged in offering Tile Abrasion Tester, which is highly acknowledged for accurate results and premium quality. This tester is used for testing the abrasion resisting capacity of a tile. Moreover, this tester is available in varied capacities and grades as per the specification details of the clients. We supply this with automatic preset revolution counter and a 7.5 kg weight but without abrasive powder and thickness gauge. This tester is suitable for operations of about 230 V single phases.

Following are the specifications of these testers:

• The tile sample is properly pressed under a specified load against a grinding path that is strewn evenly with abrasive powder revolving at a rate of 30 + 1 r.p.m.
• At the end of 100 revolutions of the disc, the second parallel side of the sturdy tile is subjected to wear for an similar number of revolutions of the disc
• The wear of tile is measured using the thickness gauge
• The Abrasion testing machine comprises of the following:
• A replaceable grinding path fitting on a rotating disc to its vertical axis
• The rotating disc and grinding path are properly enclosed by a circular tray
• A bracket holds the specimen
• The loading is done by a counter balanced lever
• A funnel is provided that facilitates charging the grinding path with abrasive powder
