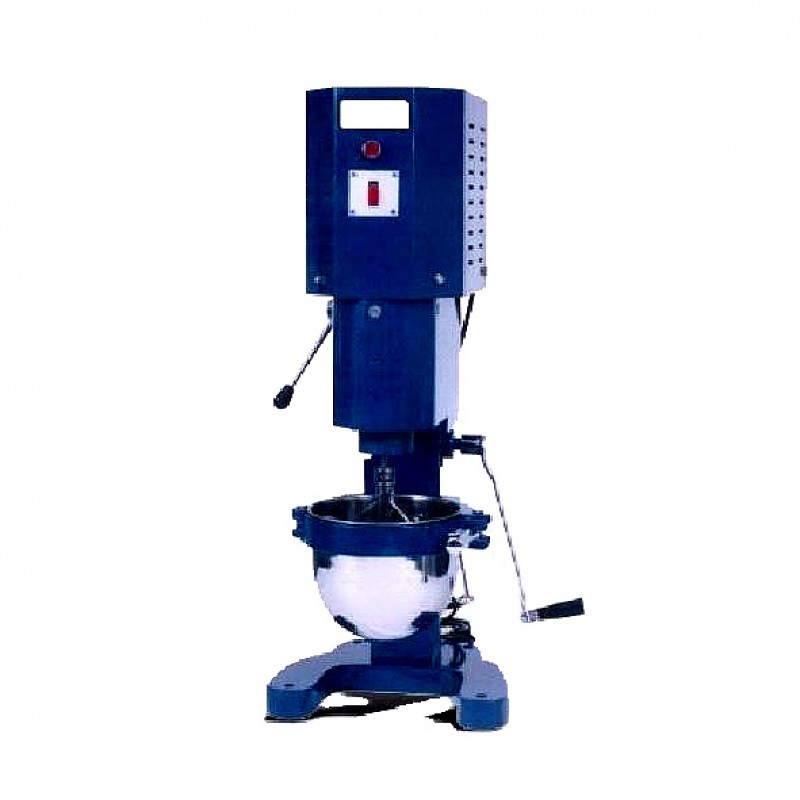

It is used for mixing cement pastes, mortars and pozzolanas.

The mixer consists of:

• an epicyclic type stainless steel paddle imparting both planetary and revolving motion.
• Mixer have two speeds.
• Mixer blade has low speed of 140 + 5 rpm and medium speed of 285 + 10 rpm, while it also has a planetary movement of 62 + 5 rpm in low range and planetary movement of 125 + 10 rpm in medium range.
• Stainless steel bowl fitted with handle, fitted with lid made of non-absorbing material and not attacked by cement, masonry cement, cement pozzolana mixture or lime pozzolana mixture.
• The scraper consists of semi rigid rubber blade attached to a handle about 150 mm long.
• The blade about 75 mm long, 50 mm wide and tapered to a thin edge.
• Suitable for operation on 230 Volts, single phase.

RELEVANT STANDARD : IS : 4031, IS : 1727
