Construction Lasers

Product Details:

Construction laser projects a beam of light that can be leveraged as a visual straight-line reference, however, the size of the beam is highly dependent on the size of the diode. With a wider beam of light, the level point can exist anywhere within the width of the beam. Hence, in such a scenario, a smaller beam is always better as it’s more precise.

Construction lasers can be leverage

• Installation of chair railings in a dining room.
• Installation of power conduits and receptacles for a home/ building under construction.
• Construction lasers can also be leveraged to hang paintings/ pictures/ mirrors on a wall and install sewer pipes.

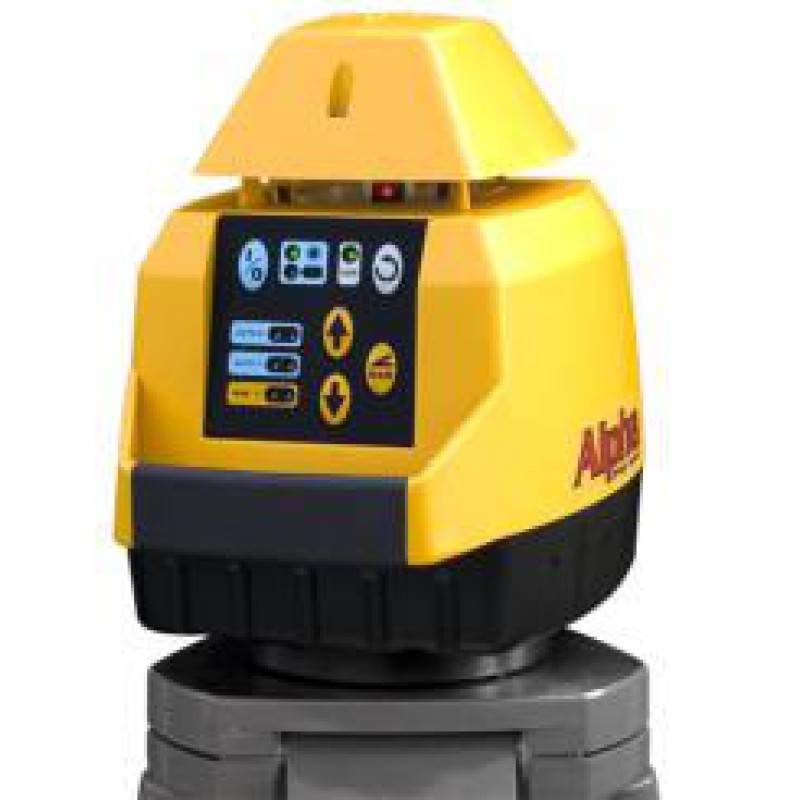

Servo self leveling, high performance, rugged design. The Pro Shot™ Alpha construction laser level tool is designed for concrete and general contractors, working on large commercial or municipal sites.  The Alpha laser is built amazingly tough, to handle the real-world use and abuse that happens on sites with large crews. Electronic servo self leveling means you simply turn the laser on and it levels itself automatically. The Alpha also provides manual slope matching.

Range with R9 Laser Receiver Accuracy	2000′ dia, 1000 rad. (610 m/305m)
Accuracy	+10 arc sec. (+1/16″ per 100′)
	+1.5 mm per 30 m
Self levelling type.Range	Servo Motor, +5 degrees
Slope matching.Range	Single Axis, X-Axis self levelled .8%
Height alert	Normally active, can be disabled
Rotation coverage.Speed	360 degree.600 or 12rpm. selectable
Machine control compatible	Yes, including high speed rotation
Power Source & Life	Four C Cells, 115 hrs
Rechargeable Batts. Life	Optional Ni-Mh Kit * 85 hrs
Laser Beam type	Visible 670nm
Alpha laser classification	CDRH and IEC Class2
Dust and water sealed	To international standard IP56
Operating temperature	-20 deg C to 60 deg C
Built to be josite tough	Designed to withstand a 3ft (1m) drop or 5 ft (1.5m) tripod knock-over on concrete.

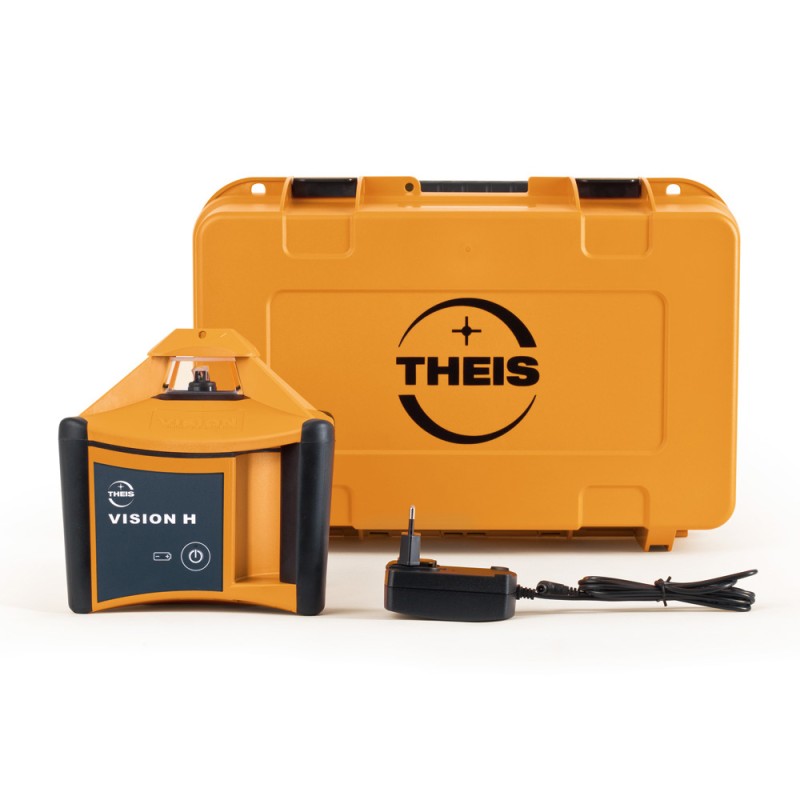

Theis Germany Vision H

Theis Germany, Horizontal laser, featuring only one button – operating errors are positively excluded.

TILT in levelling

Range up to 750 m (radius)

Laser Class/High Power (option) 2/3R Wave length 635 nm Output/High Power (option) < 1 mW/< 5 mW Range (radius)/High Power (option) ca. 300/750 m Horizontal/Vertical ✓ / – Self-levelling range ± 5° Grade range x,y – Grade compensation – Levelling accuracy ± 1,5 mm/30 m Align function, horizontal/vertical * – Speed step by step mode (rpm) 600 Scan-function – Partial mask mode – Windy function – Display lighted – Power source NiMH+ or Alkaline “D“ cells Charging time ≈ 6 h Operating temperature -15 … +50 °C System of protection IP 67 Weight ≈ 3 kg
