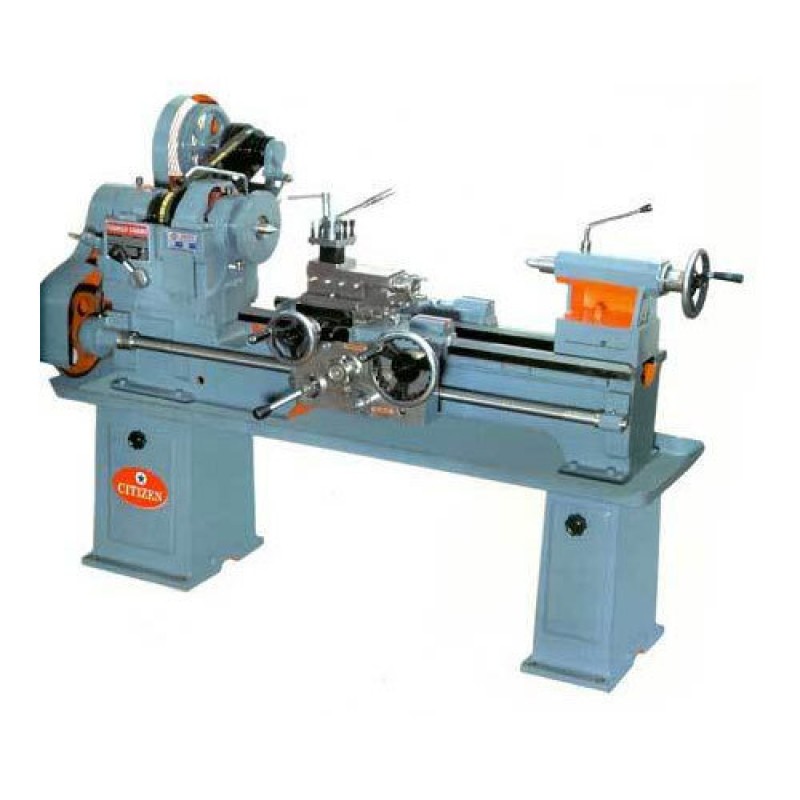

Medium Duty Lathe Machine

Product Details:

Voltage (V)	280 to 340 V
Material	Iron
Accessories Includes	Chuck plate, Three pin guide, Dead sleeve, Change gear set, 2 dead centers, Motor pulley
Weight	650 -900 Kg.

We are offering highly efficient Medium Duty Lathe Machine in the national markets. We source Medium Duty Lathe Machines from trusted sources and by conducting tests runs at our unit we make sure that these machines provide trouble free operations at the clients' establishment. Besides, we provide these Medium Duty Lathe Machines at very competitive rates to the clients.
¿¿
Specifications

Capacity Data	MLM -1	MLM -2	MLM -3	MLM -4
Length of Bed	1370 mm (4'-6")	1600 (5'-3")	1800 mm (6")	2133 mm ((7")
Center Height	215 mm (81/2")	215 mm (81/2")	215 mm (81/2")	215 mm (81/2")
Maximum Swing Over Bed	432 mm (17")	432 mm (17")	432 mm (17")	432 mm (17")
Maximum Swing Over Carriage	253 mm (10")	253 mm (10")	253 mm (10")	253 mm (10")
Maximum Swing in gap	127 mm (5")	127 mm (5")	127 mm (5")	127 mm (5")
Length of Gap on front of Face plae	660 mm (26")	660 mm (26")	660 mm (26")	660 mm (26")
Admit between Centre Width of Bed	558 mm (22")	787 mm (31")	1016 mm (40")	1320 mm (52")
Width of Bed	280 mm (11")	280 mm (11")	280 mm (11")	280 mm (11")
Length of Gap	127 mm (5")	127 mm (5")	127 mm (5")	127 mm (5")
Spindle Nose Dia Threads	76 mm x 6TPI	76 mm x 6TPI	76 mm x 6TP	76 mm x 6TPI
	3" x 6 TPI	3" x 6 TPI	3" x 6 TPI	3" x 6 TPI
Spindle Bore	52 mm (2.1/ 8")	52 mm (2.1/ 8")	52 mm (2.1/ 8")	52 mm (2.1/ 8")
Taper of Center	MT - 4	MT - 4	MT - 4	MT - 4
Spindle Speed No.	6	6	6	6
Tail Stock Spindle Diameter	52 mm (2")	52 mm (2")	52 mm (2")	52 mm (2")
Travel	125 mm (5")	125 mm (5")	125 mm (5")	125 mm (5")
Lead Screw Dia / Threads	31 mm x 4 TPI	31 mm x 4 TPI	31 mm x 4 TPI	31 mm x 4 TPI
Weight (Approx.)	650 Kg.	700 Kg.	750 Kg.	900 Kg.
