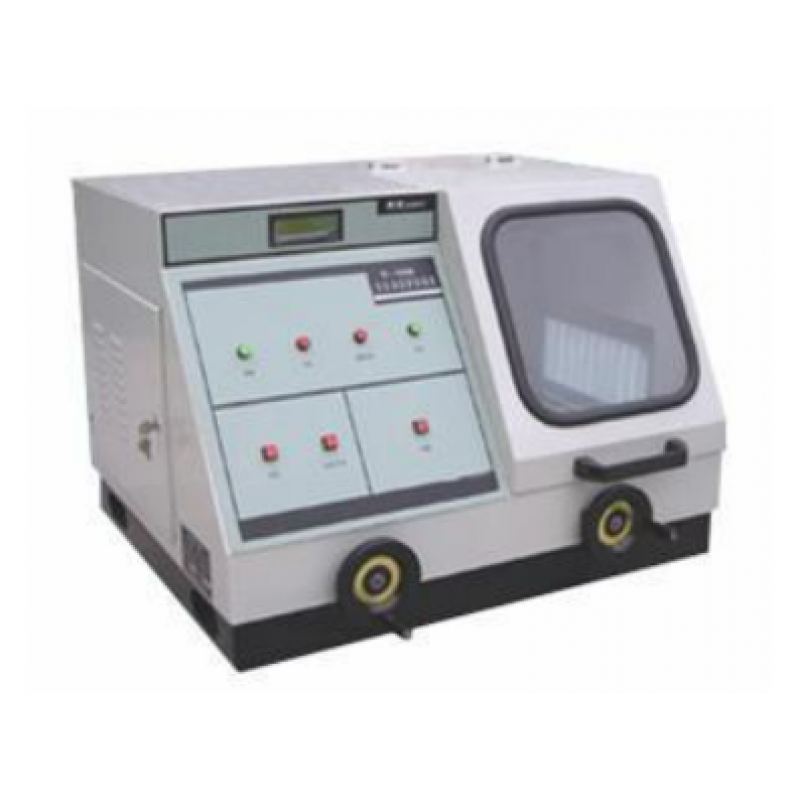

Cutting Machine

MAIN FEATURES:-

      LCD displays all the cutting data..

      The diameters of specimens to be cut range from 5mm to 80mm (100B:100mm) and    the cutting capacity reaches 100mmx200mm..

      Manual cutting and automatic cutting can be changed over at random

      Large cutting chamber and tempered-glass view window

      Non-burnt movable cutting mode which greatly improves cutting quality.

      Automatic retract at the end of cutting operation.

      Dual-direction feel which increases the depth of cutting.

TECHNICAL SPECIFICATIONS

      Cutting Speed: 2.25, 3, 45, 5, 7, 9, 12, 15 mm/min

      Revolution of abrasive wheel:: 2100rpm

      Specifications of abrasive wheel: 350x2.5x32

      Display: high-resolution negative lattice LCD

      Power: three phases, four cables, 380V, 50Hz

      80z overall dimensions: 780mmx 800mmx600mm

      100B overall dimensions: 930mmx 700mmx610mm
